VictorTM General Purpose Industrial Light
  • ETL
  • CB1
  • CE
  • Rohs

Victor is a robust general-purpose luminaire with a reminiscent design of industrial environments, It offers a durable and versatile solution for many applications, especially in exposed conditions with high levels of dust and moisture, such as bridges, paper mills, power plants, ports and rail yards, petrochemical facilities, water and waste water treatment plants, perimeters and secure areas.

Victor comes with the mains and emergency version from the backup battery, and sturdy glass or diffused polycarbonate lens options. Producing 4,680 lm light output and suitable for a wide range of ambient temperatures from -45°C to +50°C, Victor is a perfect replacement of traditional incandescent and most tungsten halogen lights for both indoor and outdoor applications, and operates for up to 50,000 hours eliminating relamping in many applications.

Specifications

Description

Features

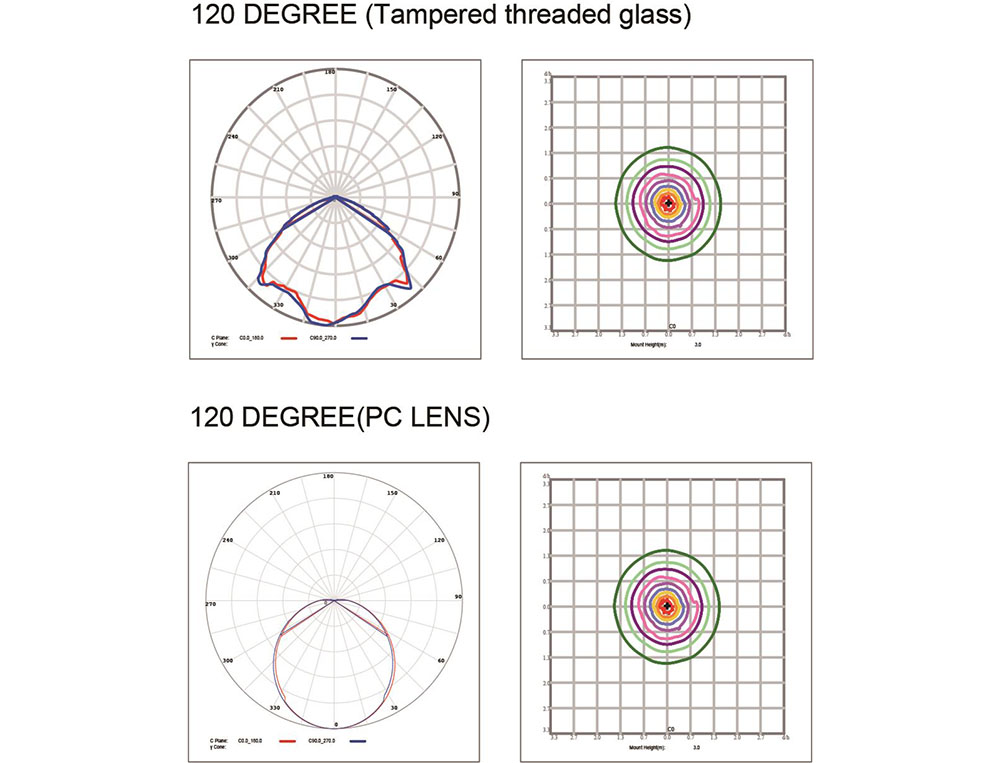

Photometrics

Accessories

LED Chip & CRI

Philips Lumileds / RA≥70

Input Voltage

100-240VAC/100-277VAC

CCT

3000K, 4000K, 5000K, 5700K, 6500K

Beam Angle

120°(PC Frosted ) / 120°(Tempered Glass)

IP & IK

IP66 / IK10

Driver Brand

Sosen Driver

Power Factor

0.95 minimum

THD

20% Max

Housing

Corrosive resistant polyester powder coat finish

Work Temp

-30°C ~ 55°C / -22°F~ 131°F

Mount Option

Hang Ring / U Bracket

Warranty

5 Years Warranty

Certificate

ETL CB CE RoHS

Model

Power

Efficacy(IES)

Total Lumen

Dimension

EO-VIC-36

36W

130lm/w

4,680lm

405x227x227mm

EO-VIC-36 PC

36W

130lm/w

4,680lm

365x227x227mm

FAQ

Q1: Are you a manufacturer?

E-LITE: Yes, our factory with over 15 years R&D and manufacture experience base on ISO9001 quality management.

Q2. Can I have a sample order for LED Light?

E-LITE: Yes, sample order to test and check quality is welcomed. Mixed samples are acceptable.

Q3. How about the lead time of LED Light?

E-LITE: 5-7 days for sample order, 15-25 days for mass production order base on order quantities.

Q4: How do you ship the finished production?

E-LITE: By SEA, AIR or Express (DHL, UPS, FedEx, TNT, etc.) are optional.

Q5: Does E-lite accept private lable on the Victor area lights?

E-LITE: Yes, OEM service available, we can help to make the label and color box according to your requirements.

Q6: How to place an order for LED Light?

E-LITE: Firstly, please let us know your detail requirement and application environment, secondly we will recommend some suitable products and solutions to you according to your request. Thirdly, after confirm all the details, customers will issue the purchase order and make the payment to confirm, and then we start for the production and arrange the shipment.


  • Previous:
  • Next:

  • E-Lite Victor LED light designed for the general purpose lighting that suitable for use in warehouse, tunnel, street, workshop, factory, moreover its tough die casting housing guarantee its durable for such harsh environment, like, mines, bridges, oil refineries and the like conditions for both indoor and outdoor application. Victor LED fixture has the robust configuration and solid housing that show its industrial typical lighting fittings in appearance wherever it light up. Heavy-duty lighting, industry lighting, solid lighting and qualified Luminaire are its nature built in.

    Elite’s Victor area light with latest energy-efficient and long-lasting LED technology – Creating the ideal solutions for HID light replacement and all general purpose lighting needs. 4,680 Lumens output and 36-Watt at 130 Lumens per watt, wide voltage input 100-277V and 100-240V which can match both standards of American and European power grid. Three lens and covers made from templated glass and PC materials further expand its usages as one innovation led lights. While for installation, expected offer two options, U bracket and hang ring, one AC terminal box stand by, making its wiring in parallels feasible on fields.

    Even the fixture color temperature on Victor series light goes to 4000K for most of lighting projects and outdoor lighting solutions, 3000K, 5000K, 5700K even 6500K color temperature Victor luminaire still can offered as the demands from lighting market both home and abroad.

    In addition, Victor LED light generally has die-cast aluminum housing taking the whole housing as one entire heat sink which way can maximize heat dissipation effectively and further promote long LED fixture lifespan to 100,000 hours or even more longer.

    Emergency backup are available for E-Lite Victor series fixture, E-Lite equipped the 90 minutes emergency Li battery as standard version from the qualified upper supplier, of course 180 minutes battery still for option from the markets or projects applications. This way definitely expands its touching to further lighting solutions area to meet its niche demands in lighting projects.

    ★ System Light Efficacy 130 LPW

    ★ Industrial level

    ★ Easy Installation & Maintenance

    ★ IP66 & IK10 rating

    ★ Heavy duty rating

    ★ Emergency version also available

    ★ CE, RoHs, CB supported, ETL

    Replacement Reference Energy Saving Comparison
    EO-VIC-36 100 Watt Metal Halide or HPS 64% saving

    Victor-Series-General-Light-Area-Light1

    Type Mode Description
    HR20 HR20 Hang Ring
     UB UB U Bracket
    ACT ACT AC Terminal Bo
