StellaTM LED Canopy Light
  • CB1
  • CE
  • Rohs

The modern and compact aesthetic Stella is designed for under-canopy lighting in gas stations, drive thrus, covered walkways, and other commercial areas. Creating a clean and crisp environment to attract more customers with bright, comfort and safety feeling, the fixture is ideal to replace 165W to 400W HID, such as Scottsdales and many other similar fixtures. It offers more than 70% of energy y savings, whilst delivering long lifetime, in often hard to reach maintenance areas.

Stella comes with choices of mounting accessories for recessed-in, surface mount, or conduit hanging. IP66 rated to keep water and insects out.

Specifications

Description

Features

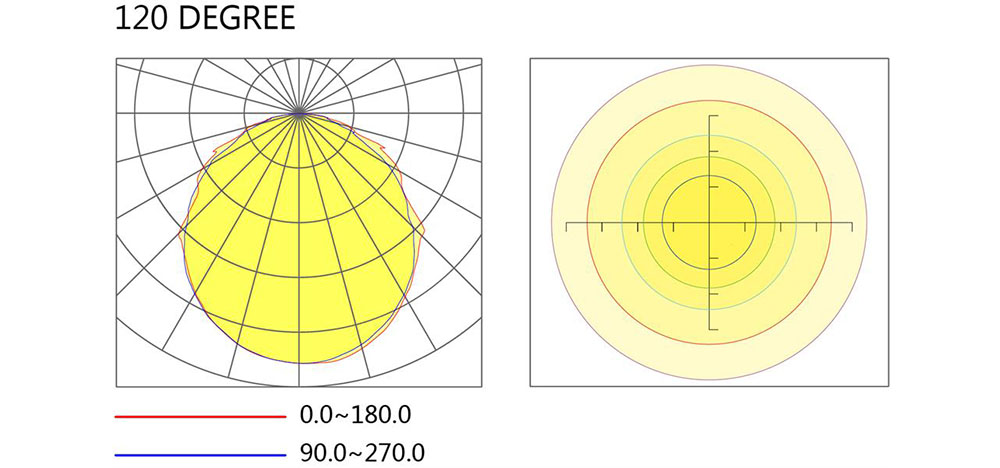

Photometrics

Accessories

Parameters
LED Chips Philips Lumileds
Input Voltage 100-277 VAC
Color Temperature 4500K-5500K (2500K-6500K Optional)
Beam Angle 120°
IP & IK IP66 / IK10
Driver Brand Sosen / E-lite Driver
Power Factor 0.95 minimum
THD 20% Max
Dimming / Control 0/1-10V Dimming / IOT Smart control system
Housing Material Die-cast Aluminum(White Color)
Work Temperature -30 to 55°C (-22 to 131°F)
Mount Optional Recessed-in Installation / Surface Mount with Bracket / Surface Mount with Conduit

Model

Power

Eifficacy(IES)

Lumens

Dimension

Net Weight

EO-CPSTL-80

80W

150LPW

12,000lm

280×280×96.5mm

2.1kg/4.6lbs

EO-CPSTL-100

100W

150LPW

15,000lm

280×280×96.5mm

2.1kg/4.6lbs

EO-CPSTL-120

120W

150LPW

18,000lm

382×382×117.5mm

3.1kg/6.8lbs

EO-CPSTL-150

150W

150LPW

22,500lm

382×382×117.5mm

3.1kg/6.8lbs

FAQ

Q1: What is the warranty for the lights?

E-LITE: 5 years warranty. If there is any quality problem during the warranty period, we will cover the shipping cost and replacement.

Q2: Can we make our own label on the sample lights?

E-LITE: Yes, we can use the label you offer, we can also do OEM & ODM.

Q3: We now have Gas Station/ Toll Gate/ Warehouse/Workshop projects need to do the lighting design, can you help us?

E-LITE: Sure we can, we are professional outdoor high power LED flood lights and LED design provider; our design teams can provide you the best solution. And if your engineer can design by yourself, we can provide the IES files for you.

Q4: I have a warehouse/workshop, what's your suggestion?

E-LITE: Please give me the below information:

1. The size of the warehouse/workshop

2. The installation height

3. The requirement of the illumination

Then our engineer can give you a solution.


  • Previous:
  • Next:

  • Stella series canopy lights are usually used in sheltered outdoor spaces, such as gas stations, filling stations and other large commercial buildings. The gas station light body is made of high strength die-casting aluminum material, the surface is anti-aging and static plastic spraying, self-cleaning, strong corrosion resistance, and solid enough. The mask is made of high-strength shatterproof glass, which is resistant to impact and friction.

    Canopy light adopt high-quality Philips LED chips with high stability and a service life of up to 100,000 hours, which reduces the maintenance expenditure and the waste of frequent replacement, and truly achieves low investment and high return.

    The cold light source design of LED has no thermal radiation, no harm to eyes and skin, and does not contain pollution elements such as lead and mercury, so as to realize real green environmental protection. Humanized structure design, there are three lamp installation methods to meet the needs of different occasions and make maintenance more convenient. The detailed installation steps are listed in the manual, and the required accessories are included in the package. The whole process can be completed in a few minutes.

    Canopy light adopts full heat dissipation design, the upper cover temperature is lower, and the safety protection of LED chips is good. There are 4500k-5500k light source color temperatures, of which 2500k-6500k can also be selected for you. The color rendering is very good, the brightness is stable, and the actual color is more realistic, meeting the environmental needs of different regions and different times.

    Sosen constant current and constant voltage control power supply is suitable for wide voltage (AC 100-277v), which overcomes the shortcomings of ballast on power grid and noise pollution, and is safer and more stable to use. Stella series ceiling lamps with the above performance are also fashionable enough with excellent decorative effect, post top LED lantern with a timeless design with a variety of optical cover shapes and finishes to adapting to different environments and needs.

    CERTIFICATION & WARRANTY: E-Lite Stella Series Canopy Light provides a 5 year warranty along with CE, RoHS CB, ETL, DLC Pending certifications.

    ★ System light efficacy 150 LPW

    ★ Easy Installation & Maintenance

    ★ Rugged One-piece Die Cast Housing Design

    ★ Surface spraying power box

    ★ Stainless steel fasteners

    ★ Surface sprayed die-cast lamp body

    ★ 0/1-10V Dimming, IP66 Rated.

    ★ 5 Years Warranty.

    ★ CE, RoHS, CB, ETL, DLC Pending

    Replacement Reference Energy Saving Comparison
    80W STELLA SERIES CANOPY LIGHT 150/ 250 Watt Metal Halide or HPS 47%~68% saving
    100W STELLA SERIES CANOPY LIGHT 250 Watt Metal Halide or HPS 60% saving
    120W STELLA SERIES CANOPY LIGHT 250/400 Watt Metal Halide or HPS 52%~70% saving
    150W STELLA SERIES CANOPY LIGHT 400 Watt Metal Halide or HPS 62.5% saving

    Stella-Series-Canopy-Light

    Mount Kits Option
    Recessed-in Installation Recessed-in Installation
    Surface Mount with Bracket Surface Mount with Bracket
    Surface Mount with Conduit Surface Mount with Conduit
