PhotonGroTM 1 - LED Grow Light
-
-
|
Spectrum |

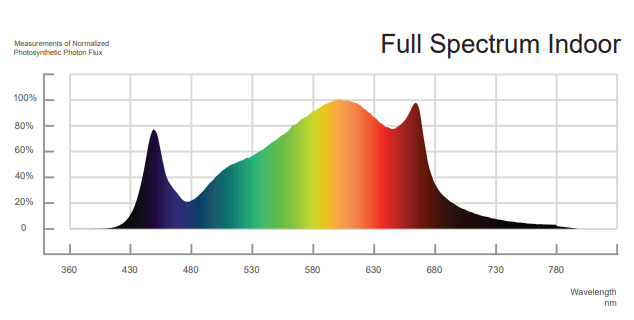

Full Spectrum Indoor |
|
AC Input Power |
600W/800W/1000W @ 277V AC |
|
AC Input Voltage |
120-277V AC, 50/60Hz |
|
Power Per Module |
100W |
|
Light Distribution |
120° |
|
Work Temperature |
-40 to 45°C/-40 to 113°F |
|
Dimming |
0-10V |
|
THD |
< 10% |
|
Lifetime |
L90: > 36,000hrs |
|
IP |
IP66 |
|
Mount Option |
Hanging Bracket/Chain Mount |
|
Warranty |
5 Year Standard Warranty |
|
Certificate |
ETL,DLC (Pending) |
|
Model |
Power |
PPF |
PPE |
PPFD @ 6" PPFD @ 12" |
Dimension(mm) |
Fixture Weigh with Driver |
|
PhotonGro 1 |
600W |
1530 µmol/s |
2.55 |
1017umol/J/m2 826umol/J/m2 |
1100*1034*92 |
12KG |
|
1620 µmol/s |
2.7 |
1140umol/J/m2 926umol/J/m2 |
||||
|
800W |
1976 µmol/s |
2.55 |
1390umol/J/m2 1130umol/J/m2 |
13.5KG |
||
|
2093 µmol/s |
2.7 |
1472umol/J/m2 1196umol/J/m2 |
||||
|
1000W |
2550 µmol/s |
2.55 |
1794umol/J/m2 1458umol/J/m2 |
16KG |
||
|
2700 µmol/s |
2.7 |
1900umol/J/m2 1543umol/J/m2 |
FAQ
E-lite: Yes, we offer customization service on these
E-lite: Low MOQ, 1pc for sample checking is available.
E-lite: We have supporting manufacturer specializing in plant lighting controllers, but the controller is sold separately. lt can adjust the light time and intensity, if you want we can provide the details information of the controller.
E-lite: Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.
E-lite: There are more cases of commercial large-scale planting, but it can also be used when the family use a larger size plant tent.
E-lite: Professional product quality inspection team ensures order defective rate; otherwise, we take full responsibility according to our wholesome after-sales support system.
The use of E-Lite LED Grow Lights can enhance the quality of seedlings, improve the quality of seedlings, shorten the seedling period and reduce energy costs. The service life is increased by 10 times, and electricity saving 69.7%. The initial investment can be recovered in 1.5 years without later investment. The layer height of tissue culture rack is reduced by 35%, and the operation comfort and work efficiency are improved. Space utilization increased by 35%. It is your best choice in considering energy efficiency, quality of cultivated plants and environmental friendliness.
Based on the achievements of E-lite Company over the past 3 years, the LED Grow Light has been developed by optimizing the spectral energy parameter, manufacturing process and shape design of the technology departments. It has the characteristics of high efficiency, energy saving, long life and convenient installation. The light is mainly composed of red and blue light sources. The red light wavelengths are 620-630nm and 640-660nm, and the blue light wavelengths are 450-460nm and 460-470nm. These light sources are the most sensitive light of plants, allowing plants to produce the best photosynthesis and obtain the best growth state. In this way, plants can promote the differentiation of multiple lateral branches and buds, accelerate the growth of roots, stems and leaves, accelerate the synthesis of plant carbohydrates and vitamins, and shorten the growth cycle. With the rapid increase of global demand for organic food, vigorously developing organic planting is an opportunity for more and more producers.
The outstanding advantages of E-Lite LED Grow Light are: it has a longer service lifespan, up to 36000hrs. The LED Grow Lights can be set closer to plants; planting space does not need to be very high or very wide, so occupying smaller space, very convenient. The use of LED plant growth lights can optimize the spectrum by concentrating energy on the most useful wavelengths (colors) of each application and plant. In addition, reduced heat generation allows the LED Grow Lights to be closer to plants, ensuring less light loss elsewhere and improving energy efficiency. At the same time, the LED Grow Lighting is designed as a cold light source, which is safer to use and will not affect the water and nutritional needs of plants. The E-Lite LED Grow Light is a full spectrum design, and 0-10V dimming can be realized by using the remote controller or application program at the same time, so it is easier to operate in addition to consuming less power. E-Lite LED Grow Light adds ultraviolet light to the LED, so there are fewer opportunities for bacteria and mold formation, which means less pesticides and less environmental pollution.
CERTIFICATION & WARRANTY: E-Lite LED Grow Light PhotonGro 1 provides a 5 year warranty along with ETL, DLC (Pending).
★ Full Spectrum Indoor Grow Light
★ Input Voltage: 100-277V (0-10V Dim)
★ 120° / IP66 / THD<10%
★ Lifetime L90: >36,000Hrs
★ Max. Ambient Temp:-40 to 45°C/-40 to 113°F
★ Mounting Height:6″-12″/15.2-30.5cm Above Canopy
★ Mounting Kits: Hanging Bracket/Chain Mount
★ ETL DLC Pending / 5 Years Warranty
