OrionTM Area and Roadway Light
  • ETL
  • 3f4e542bed6cfaa79a5e3ddb48670be
  • CE
  • Rohs

Orion is the modern stylish replacement of the legacy shoebox area light and/or under-deck light. Available in three sizes and five lumen packages, it is a high performance, high efficacy, long-life luminaire ideal for replacing 150W to 1000W metal halide in pedestrian, parking lot or under-deck lighting applications with typical energy savings of 70% and expected service life of over 100,000 hours.
Coming with four unique mountings, Orion is suitable for either square pole or round pole, as well as for wall mount, under deck mount and pole mount.

Specifications

Description

Features

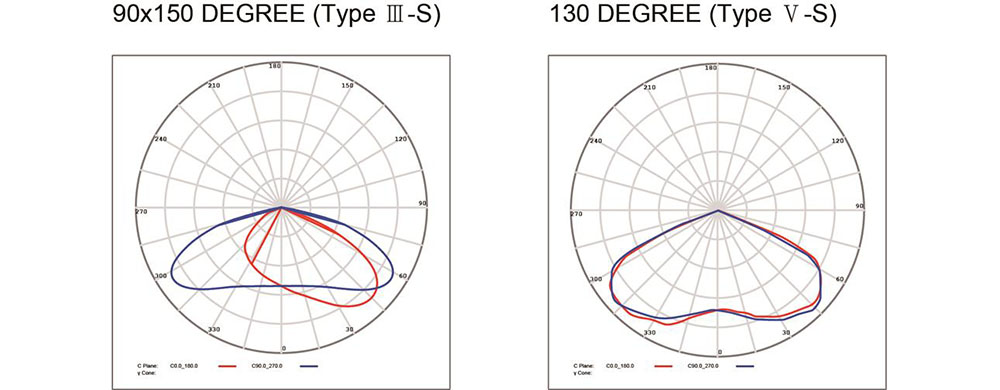

Photometrics

Accessories

Parameters
LED Chips Philips Lumileds / Cree
Input Voltage 100-277 VAC (200-480 VAC Optional) Dimming Optional
Color Temperature 4500~5500K (2500~5500K Optional)
Beam Angle Type Ⅲ-S 100x155° Type V-S 130°
IP & IK IP66 / IK10
Driver Brand  Sosen Driver
Power Factor 0.95 minimum
THD 20% Max
Dimming / Control 0/1-10V Dimming / NEMA Twist-locked Photocell
Housing Material Die-cast Aluminum(Bronze)
Work Temperature -30°C ~ 50°C / -22°F~ 122°F
Mount Kits Option Slip Fitter / Straight Arm / Trunnion

Model

Power

Eifficacy(IES)

Lumens

Dimension

Net Weight

EO-ARORN-50

50W

150LPW

7,500lm

485×300×75mm

4.5kg/9.9lbs

EO-ARORN-100

100W

145LPW

14,500lm

485×300×75mm

4.5kg/9.9lbs

EO-ARORN-150

150W

130LPW

19,500lm

485×300×75mm

4.5kg/9.9lbs

EO-ARON-150A

150W

150LPW

22500lm

620×300×75mm

5.9kg/13lbs

EO-ARORN-200

200W

145LPW

29,000lm

620×300×75mm

5.9kg/13lbs

EO-ARORN-240

240W

150LPW

36,000lm

790×300×75mm

8.4kg/18.5lbs

EO-ARORN-300

300W

145LPW

43,500lm

790×300×75mm

8.4kg/18.5lbs

FAQ

1. Who are we?

E-LITE: We have 15 years of led lighting manufacturing experience in China and 12 years international LED lighting business experience. ISO9001 and ISO14000 support. ETL/DLC/CE/CB/RoHS/SAA certificates support for different products. We always keep our client's profits and never play the price game in the market.

2. How to install the product?

E-LITE: Products generally have different installation methods, which can meet the needs of all aspects. Moreover, the installation method of the product is simple. Detailed installation tutorials will be equipped in the details page to let you worry free.

3. What are the advantages of our products?

E-LITE: The advantages of our products are as follows:

1. We are the source manufacturers, quality is guaranteed, product warranty can reach 5 years or 10 years.

2. The price is more affordable. The more you order, the cheaper the price.

Choosing us means choosing protection. We will give you a discount on the platform price, if you are interested, please feel free to contact us.

4. How can we guarantee quality?

E-LITE: Always a pre-production sample before mass production;
Always final Inspection before shipment;

5.What can you buy from us?

E-LITE: Sports light & Flood light, Roadway Lighting, High Bay for 80℃/176℉ Ambient Temp, Engineering & Heavy-duty Lighting, Area Lighting & High Mast Lighting, High Bay for General Uses, Wall Pack, Canopy Lighting, Tri-proof Linear Luminaire, etc.


  • Previous:
  • Next:

  • E-Lite Orion born according to the market demands directing came from clients. At first place, of good performance and compact design rooted in the design conception, consequently die-casting housing, flexible LED matrix and multi-mount accessories combined to it which as one super powerful luminaire applied into but not limited to roadway, street light, car park, underdeck, under bridge.

    The area lights can be paired with motion sensors, light sensors and timers as well as the smart control unit for smart city. If you plan to use it for safety lighting, the motion sensor will automatically turn on your lights when motion is detected. When the light sensor detects light, it will turn on area light when it is dark and turn off when there is light. This can help extend the service life of the area light. On the other hand, Orion shoebox series will provide stable light, improve the overall visibility of objects and provide more security for people. Its Ingress protection level is IK10. The first number indicates that the dust-proof ability of lamps is completely sealed, and the second number indicates that lamps can be sprayed by water column from any direction. In addition, there is another IK10 grade, which indicates that the protection grade of the lamp shell against harmful mechanical collision to the outside world is very excellent.

    Long lifespan, high security requirements lead the lighting and maintenance costs to be the main operating costs for the parking lot. Orion Parking lot Light leads the technology trend based on its advanced techniques and outstanding performance, promoting the value of parking lot lighting.

    The Orion series lights have four energy saving targets: improving illumination ≥ 20-30%, electricity saving ≥ 85-75%, return of investment ≤ 8 months and the maintenance saving costs in 5 years ≥ 30%. Orion series LED area lighting hardly needs some daily maintenance. The service life of lamps is up to 100,000 hours.
    The Orion series area lights have advanced technology in four aspects. Original different-grade light circuit redefines the simple intelligent lighting. Advanced circuit design keeps its reliability, and security. The above points show that the Orion series light is your best choice for area lighting and parking lot lighting.

    CERTIFICATION & WARRANTY: E-Lite Orion Series Area Light & Parking Lot Light provides a 5 year warranty along with CE, RoHS, ETL, DLC certifications.

    ★ Multi-applications for roadway, car park and underdeck

    ★ Weather-proof One Piece Die-cast Aluminum Housing.

    ★ Easy Installation & Maintenance.

    ★ Top Grade UV Resistance Polycarbonate Lens equipped.

    ★ Smart Control System is Optional.

    ★ Standard 5-year Warranty Supported.

    ★ 10-year Warranty is Available upon request.

    ★ Photocell Control and smart control are Optional.

    ★ ETL, DLC. CE, RoHS

    Replacement Reference Energy Saving Comparison
    50W ORION SERIES AREA LIGHT 100/150 Watt Metal Halide or HPS 50%~66.7% saving
    100W ORION SERIES AREA LIGHT 250 Watt Metal Halide or HPS 60% saving
    150W ORION SERIES AREA LIGHT 400 Watt Metal Halide or HPS 62.5% saving
    200W ORION SERIES AREA LIGHT 750 Watt Metal Halide or HPS 73% saving
    240W ORION SERIES AREA LIGHT 750 Watt Metal Halide or HPS 68% saving
    300W ORION SERIES AREA LIGHT 750/1000 Watt Metal Halide or HPS 50%~70% saving

    Orion-Series-Area-Light-Parking-Lot-Light1

    Image Product Code Product Description
    SP-SA SP-SA Side Arm
    SP-SAA SP-SAA Adapter(for Side Arm+Round pole)
    SP-SF SP-SF Slip Fitter
    SP-TR SP-TR Trunnion
