News - How LED High Temperature LED High Bay Application

In the modern society, due to the impact of global warming, rare high-temperature weather shocked in all parts of the world. Many facilities have been seriously affected by the lack of necessary protective measures.

The normal production of the factories require stable lighting, and now the working temperature ceiling of most luminaries are maintained at 45 ° C ~ 50 ° C. In the case of extreme high temperature, ordinary LED luminaries are easily unable to dissipate heat in time due to excessive ambient temperature. In the worst case, the LED chip will not work and lifespan of the LED chip will be directly reduced.

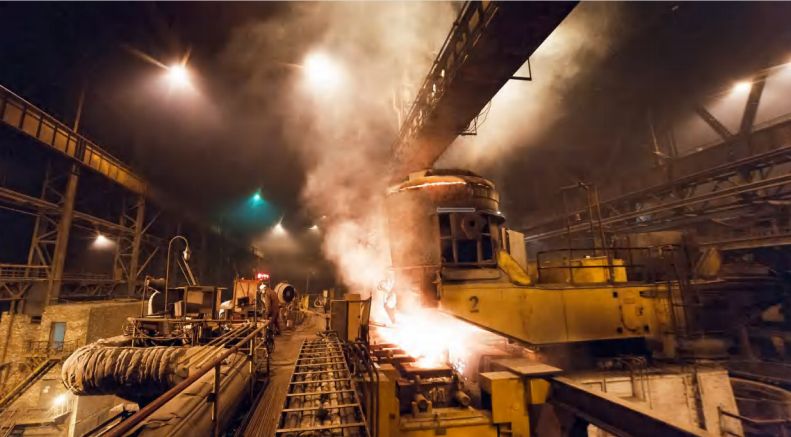

Therefore, in areas with high temperatures, such as the USA & Middle East, and areas where extreme high temperatures have occurred, it is recommended to upgrade to high temperature resistant luminaries. Especially to Steel Factories including near Furnaces and Smelters, Test Cells, Boiler Rooms, Chemical Plants, Industrial Ovens, Paint Curing Bays, Kilns and underground deep Mine Sites.

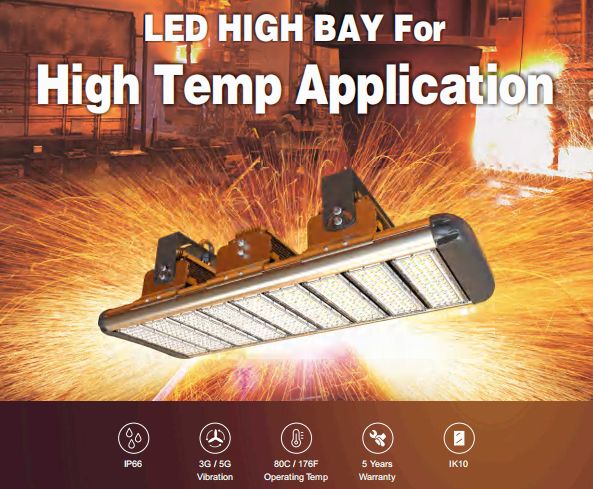

E-LITE high temperature lights including LED Flood and High bay lights (50W-450W@130LM/W) rated at an ambient operating temperature of 80°C are a heavy duty industrial high temperature light, LED High Bay or LED Flood Light, designed to operate in extreme temperatures such as steel smelters, hot strip mills, kilns, boiler rooms, or other hot environments including hot roof spaces in hot Summer Climates.

Available in 50W, 100W, 150W, 200W, 300W and 450W modules, 130 lm/W using Osram or Philips LUXEON LEDs and 30°, 30*100°, 60*100°, 90°, 110°, 150°, 75*135°, 75*145°, 60*150° and 73*133° beam angles there is enough flexibility to suite any application and tower height where very hot temperature conditions exist.

High Temperature Resistance (Working Temperature Up to 80°C)

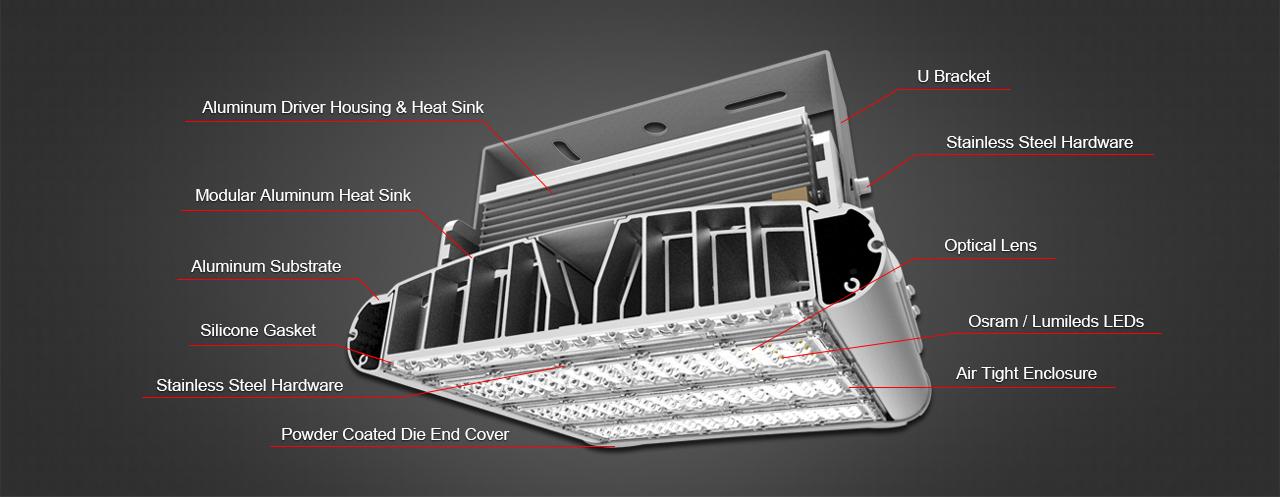

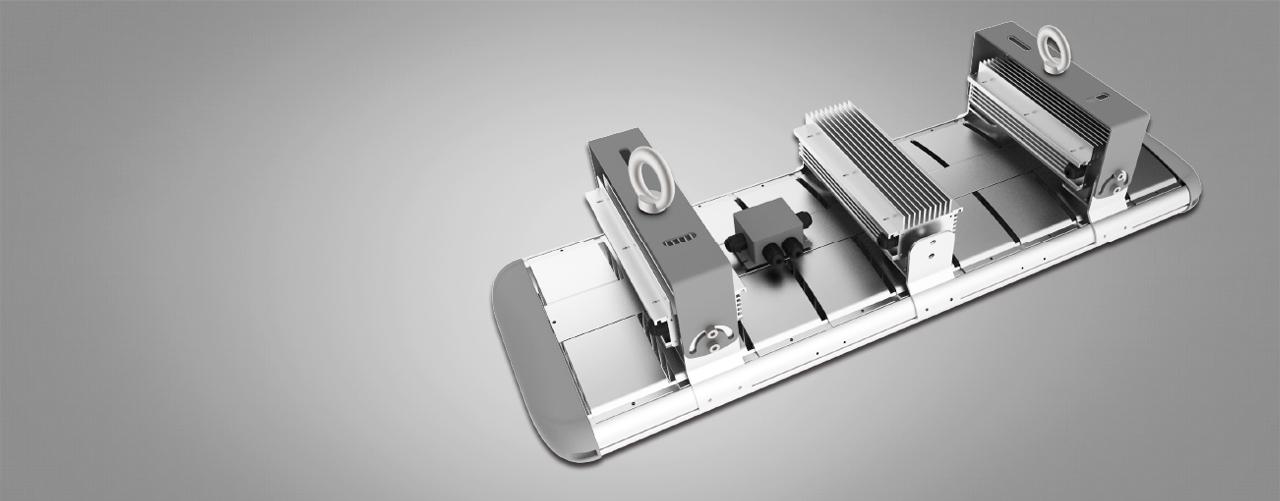

Edge High Bay & Flood adopts the advanced Heavy duty Aluminum Heatsink as its thermal fillers and enhances a superb thermal dissipation & higher efficacy. The additional CNC Aluminum Heat Sinking applied to the LEDs and LED Driver/Power Supply, including air gap enable optimal cooling of both LEDs and power supply ensuring the life span of the lighting system in more extreme temperatures up to 80°C.

High Quality PC-3000U Lens

High Heat resistance PC optical lens, the materials of PC-3000U resistance 125°C, high transparency and high weatherability no yellow change after 5 years or more, more than 13 different lens for different projects optional. Ensures high temperature resistance and high light efficacy (130lm/W)

Reliable High Efficacy

World-class quality LED chips (LED lifespan>100,000 hours)
First-class PC-3000U PC Lens (light transmittance up to 90%)

Superb Energy Saving

Edge LED High Bay Light with High efficacy that can replace the traditional MH/HPS lights while it can save more than 60%-70% of energy every year.

Replacement Reference		Energy Saving Comparison
EO-ED-50HT80	150Watt Metal Halide or HPS	67% saving
EO-ED-100HT80	250Watt Metal Halide or HPS	60% saving
EO-ED-150HT80	400Watt Metal Halide or HPS	63% saving
EO-ED-200HT80	750Watt Metal Halide or HPS	73% saving
EO-ED-300HT80	1000Watt Metal Halide or HPS	70% saving
EO-ED-450HT80	1500Watt Metal Halide or HPS	70% saving
