New Edge^TM Tennis Court Light

Specifically engineered for lighting outdoor tennis court, E-Lite New Edge is a game changer for court lighting applications. High-performance LEDs and precise optics produce superior levels of illumination and uniformity while throwing the light forward toward the court which reduces light pollution.

New Edge tennis court light comes with three different lumen packages catering for recreational play, club level games and professional matches. Compared with HID systems, these products reduce energy consumption by up to 70%. Gone are the days of the 1,000-watt metal halides that took 10+ minutes to start up and the high maintenance cost due to the very short lamp life of the halides.

Specifications IES Files Installation Manual

Request Free Sample Deliver To Door Contact

Specifications

Description

Features

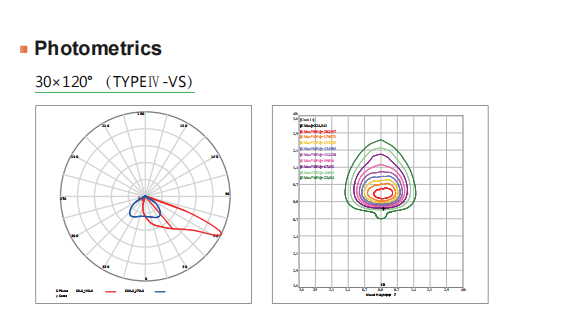

Photometrics

Accessories

LED Chip & CRI	Lumileds 5050 / RA>70
Input Voltage	100-277VAC (347/480VAC Optional)
CCT	3000K, 4000K, 5000K, 6000K
Beam Angle	30x120° / Glare-free
IP & IK	IP66 / IK10
Driver Brand	Inventronics / Sosen Driver
Power Factor	0.95 minimum
THD	<20% Max
Housing	Aluminum Alloy
Work Temp	-30 to 50°C (-22 to 122°F)
Mount Option	Long Bracket / Side Arm /Slip Fitter
Warranty	5 Years Warranty
Certificate	ETL CE RoHS

Model	Power	Efficacy(IES)	Total Lumens	Dimension	Net Weight
EL-NED-240TC	240W	155LPW	37,200lm	684x404x91mm	7.9kg/17.4lbs
EL-NED-400TC	400W	155LPW	62,000lm	684x592x91mm	14.8kg/32.6lbs
EL-NED-600TC	600W	155LPW	90,000lm	684x780x91mm	18.3kg/40.3lbs

FAQ

Q1: What's the power for each module?

Elite: This Edge series is 100-120wattage per module, deliver 150lm/w.

Q2: What is the difference between your LED Tennis Light with others?

Elite: Our TC Light using the robust material for High strength aluminum housing, equipped the top brand led source to make sure its high system efficacy. Special 30x120°glare free lens.

Q3: Can I make a sample order?

Elite: Yes, we welcome sample order to test and check quality, Mixed samples are acceptable.

Q4. Is ODM or OEM acceptable?

Elite: Yes, we can do ODM&OEM, put your logo on the light or package both are available.

Q5. What services do you provide?

E-lite: Considering the long time cooperation, it is better to let me know the following information, which kind of the buyers you are, for example you are factories, wholesalers, purchasing, dealers, consumers or do engineering, design, or home? of course, we can provide a detailed information to you about us, but we hope that you can also patiently let me know your information. We have established a customer complaint side, if you are not satisfied with our service, you can directly tell us via e-mail or telephone. We answer all questions for you.

Previous: New Edge^TM Modular Flood & High Mast Light

Next: Diamond^TM Classic Wallpack Light

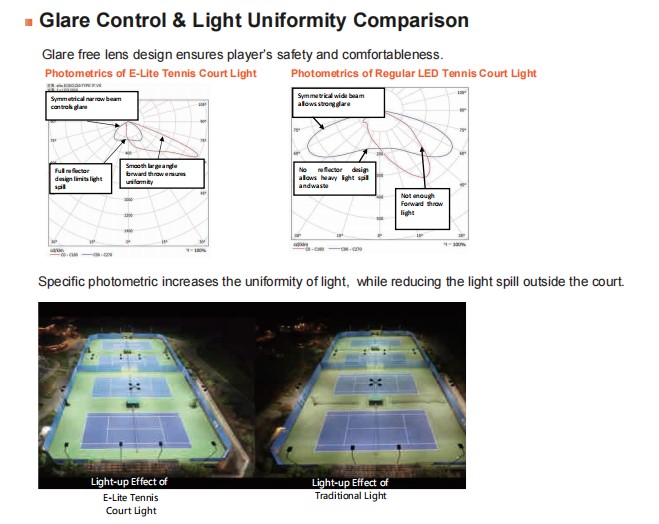

E-Lite New Edge (NED) Series tennis court lighting is designed for international tennis court lightingl market. The existing led lights for tennis court normally directly come from general floodlights and shoeboxes as well as the area lightings. Those lights only can increase the lighting level, but without any help for the lighting controlling on uniformity, glare even the spill light. How to improve the tennis court lighting from the view of player and audience?

According to the survey on Tennis court lighting and internationals standards on Tennis court lights, E-Lite team developed one special lighting distribution beam pattern which can optimize the lighting distribution on court, controlling the glare, spill lighting and up lighting. More important, such unique optical lens match all level the tennis court categories to enhance the players in filed experience and make them enjoy the playing, moreover, the audience can clear catch the movement of the players and ball.

New Edge tennis court fixture armed high power & high efficient Lumileds 5050 LED package to provide a system efficacy 155 lm/w. The superior 6063-T5 extrusion aluminum material of heat sink provides strong protection and durability while ensuring of good heat dissipation performance by the independent thermal management. Meanwhile, whole series tennis court lights equipped the brand driver, like, Meanwell, Inventronics and Sosen, which can guarantee the fixture lifespan more than 50,000 hours.

NED Tennis court lights made the breakthrough on its configuration which combines the luminaires function and appearance. As for installation, we armed the slip fitter and side arm, which can meet the 98% poles specification on market. When clients got lights on site, two mount parts can changed according to the poles size. Moreover, one spill shield offered if the projects need the back light control under 5-8% lighting level.

Smart tennis court lighting controlling still is available if projects demands. E-Lite offers two ways for smart control units. The one is for built-in which will be set up before out of factory, the other for NEMA type. Both of them will work with E-Lite iNET control system.

E-Lite Tennis court luminaire is more than one tennis court light but also it’s the friend of Tennis players!

★ System Light Efficacy 150lm/W – 155lm/W

★ Extremely high lumen uniformity

★ IP66 Water Proof Rated Housing

★ IK10 Rated for Impact Resistance

★ 3G Vibration Rating

★ Glare-Free Lens Design for Tennis Court

★ No Tilting of the Fixtures.

★ Extreme High Uniformity

★ Minimum Lighting Spill Outside of the Court

★ Five Years Warranty

★ ETL DLC CE RoHS Listed

Replacement Reference		Energy Saving Comparison
EL-NED-240W	600 Watt Metal Halide or HPS	60% saving
EL-NED-400W	1000 Watt Metal Halide or HPS	60% saving
EL-NED-600W	1500W/2000W Metal Halide or HPS	60%~70% saving

Image	Product Code	Product Description
	SF60	Slip fitter
	SA	Side Arm
	SC	Shorting cap
	PC	Photocell
	NM3	3 Pins NEMA Receptacle
	NM5	5 Pins NEMA Receptacle
	NM7	7 Pins NEMA Receptacle
	ZG	Zhaga Receptacle
