New EdgeTM Modular Street Light
-
-
|
LED Chip & CRI |
Philips Lumileds |
|
Input Voltage |
100-277 VAC (347/480 VAC Optional) |
|
CCT |
4500~5500K (2500~5500K Optional) |
|

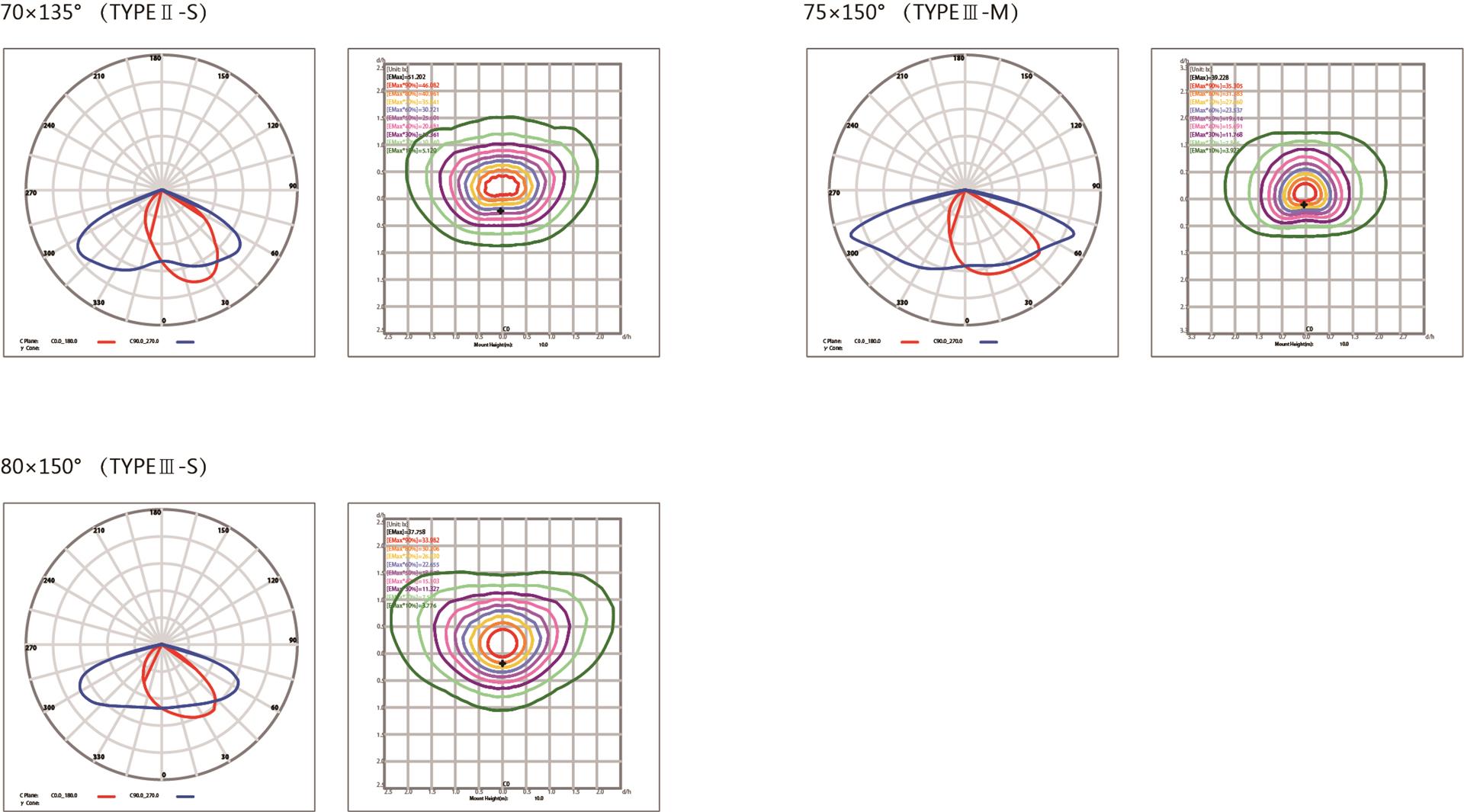

Beam Angle |
70x135° 75x150° 80x150° |
|
IP & IK |
IP66 / IK10 |
|
Driver Brand |
Sosen Driver |
|
Power Factor |
0.95 minimum |
|
THD |
20%Max |
|
Housing |
6063-T5 Extrusion Aluminum |
|
Work Temp |
-30 to 60°C (-22 to 140°F) |
|
Mount Option |
Slide-in Mount |
|
Warranty |
5 Years Warranty |
|
Certificate |
CE, RoHS |
|
Model |
Power |
Efficacy(IES) |
Total Lumen |
Dimension |
Net Weight |
|
EL-NED-120(ST) |
120W |
160LPW |
19,200lm |
493x362x80mm |
5.4kg/11.9lbs |
|
EL-NED-200(ST) |
200W |
165LPW |
33,000lm |
587x362x80mm |
6.5kg/14.3lbs |
|
EL-NED-300(ST) |
300W |
165LPW |
49,500lm |
681x362x80mm |
7.5kg/16.5lbs |
FAQ
E-lite: Yes, we welcome sample order to test and check quality, Mixed samples are acceptable.
E-lite: Yes, ODM&OEM is accepted, put your logo on the light or package both are available.
E-lite: Yes, we offer 5 years warranty to our products
E-lite: Considering the long time cooperation, it is better to let me know the following information, which kind of the buyers you are, for example you are factories, wholesalers, purchasing, dealers, consumers or do engineering, design, or home? of course, we can provide a detailed information to you about us, but we hope that you can also patiently let me know your information. We have established a customer complaint side, if you are not satisfied with our service, you can directly tell us via e-mail or telephone. We answer all questions for you.
E-lite: We are factory. Of course, welcome to Elite Semi-Conductor Co., Ltd.
E-Lite New Edge series LED street lamp is the perfect choice for road lighting, sidewalk lighting, square lighting and area lighting.
E-Lite adopts the modular design for this series further made its max power to 300W which can easy replaced the 1000W or 1500W metal halogen/high pressure sodium lamp. High efficacy Philips Lumileds 5050 packaged LED armed this series made New Edge street light’s system efficacy highly reach up to 160~165lm/W. High lumen output less power consumption led roadway lights are idea choice for those outdoor lighting projects which hard demands on power consumption from the governments.
New Edge, E-Lite called NED, street light use the highest quality extruded aluminum components for each heat sink which can power on 120W with of good heat management for each LED module. Each LED module can be quickly replaced after some modules broken down by the quick connection no need the tools. The modular design brings another advantage for the retrofitting projects by one or two LED modules to replace existed traditional bulbs according to the requirement of lighting solutions.
As the roadway lighting, NED street lights typically works with 3 to 7 Pins NEMA receptacle and Zhaga receptacle for more intelligent controlling. Based on those two types’ sockets, the twist-locked shorting cap and photocell controllers so easy to work with even the fixtures installed on the poles.
Smart street light also can be realized on NED street light with E-Lite iNET smart control system. Two unit control devices, NEMA type control device same easily twist lock on NEMA receptacle which already is equipped on fixture, and rectangular control device normally build in the driver compartment before light ship out factory, are applied into E-Lite full series street lighting fixtures. Street light with iNET smart control system easily connect to the existing central management system in market to manage all lamps in system.
Moreover, New Edge has a 5-year warranty, as well as ETL, DLC premium, CE and ROHS certification.
★ System Light Efficacy 160~165 LPW
★ Ultra-Bright, Up to 49,500Lm
★ Flexible, Modular Design
★ Multiple Choices of Optical Lenses
★ Easy Installation & Maintenance
★ Five Years Warranty
★ 3G Vibration test approval
|
Replacement Reference |
Energy Saving Comparison |
|
|
EL-NED-120(ST) |
400 Watt Metal Halide or HPS |
70% saving |
|
EL-NED-200(ST) |
750 Watt Metal Halide or HPS |
73% saving |
|
EL-NED-300(ST) |
1000 Watt Metal Halide or HPS |
70% saving |
| Type | Mode | Description |
 |
SF60 | Slip fitter |
 |
SD | Slide in |
 |
SC | Shorting cap |
 |
PC | Photocell |
 |
NM3 | 3 Pins NEMA Receptacle |
 |
NM5 | 5 Pins NEMA Receptacle |
 |
NM7 | 7 Pins NEMA Receptacle |
 |
ZG | Zhaga Receptacle |
