MarvoTM Wallpack Light
-
-
|
LED Chip & CRI |
Lumileds 3030 / RA>70 |
|
Input Voltage |
AC100-277V Or 277-480V |
|
CCT |
3000 & 4000 & 5000K |
|

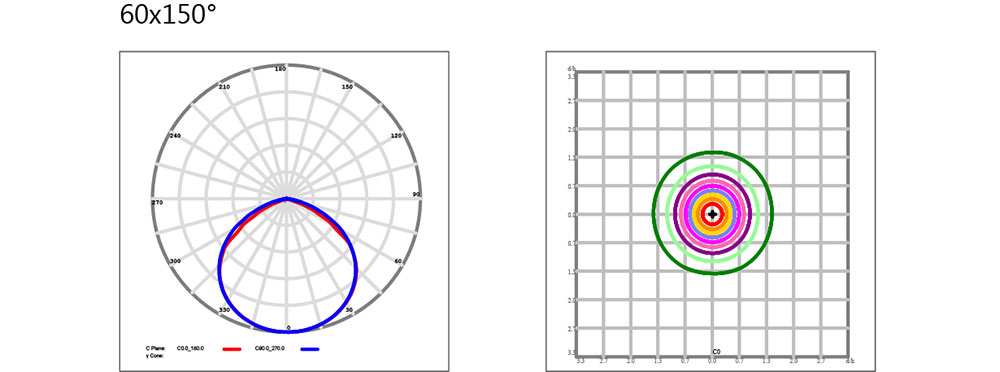

Beam Angle |
60X150° |
|
IP & IK |
IP66 / IK10 |
|
Driver Brand |
Sosen Driver |
|
Power Factor |
0.95 minimum |
|
THD |
20% Max |
|
Housing |
Die-cast Aluminum |
|
Work Temp |
-30°C ~ 50°C / -22°F~ 122°F |
|
Mount Option |
U Bracket / Slip Fitter / Side Arm / Trunnion / Knuckle |
|
Warranty |
5 Years Warranty |
|
Certificate |
CE RoHS |
| Model | CCT | Power | Efficacy(IES) | Total Lumen | Dimension | Net Weight |
| EL-MVWP-MW (80/100/150)T- MCCT(3K/4K/5K) |
5000K | 150W | 140LPW | 21,000lm | 338.5×323×80mm 13.3×12.7×3.15in |
3.5kg / 7.7lbs |
| 100W | 148LPW | 14,800lm | ||||
| 80W | 150LPW | 12,000lm | ||||
| 4000K | 150W | 150LPW | 22,500lm | |||
| 100W | 158LPW | 15,800lm | ||||
| 80W | 160LPW | 12,800lm | ||||
| 3000K | 150W | 135LPW | 20,250lm | |||
| 100W | 143LPW | 14,300lm | ||||
| 80W | 145LPW | 11,600lm |
FAQ
E-LITE: LED wall pack light is usually mounted on the outside walls of buildings. It’s bright and uniform light illumination to the area around increase security and provides a sense of safety for pedestrians. LED wall packs last much longer than their traditional fluorescent counterparts, lasting at least 100,000 hours, without any maintenance required. This means that facilities managers won’t have to use up precious space stocking replacements, nor will they have to spend time relamping. In warehouse operations, wall packs are great at increasing visibility at loading bays and docks, helping everything run more smoothly.
E-LITE: For starters, you’ll save your client up to 70-80% on energy savings. They also last up to 100,000 hours maintenance-free, which means you won’t have to spend extra time replacing them for a long time. LED lighting is also brighter and more even than traditional lighting, eliminating hot spots and glare, as well as evenly illuminating parking lots and perimeters.
E-LITE: Since warehouses operate non-stop, it’s important to use reliable lighting that won’t fail over a long period of time. Having LED wall packs on hand eliminates the need to stock extra replacement lighting, as they last for years. Operations managers also won’t need to worry arranging time for relamping. Instead, workers remain productive. Outside, LED wall packs can shine brighter light on loading bays and docks, helping workers improve their vision at night. They can also help security personnel better monitor incoming traffic, illuminating forms of identification, like IDs or license plates.
E-LITE: Yes, they can. These energy-efficient lights automatically turn on at night and turn off in the morning, when ambient light levels are ideal. These can be used anywhere, including parking garages, parking lots, and around perimeters.
E-LITE: 3000K, 4000K, and 5000K.
3000K - warm, soft light that’s typically found in residential applications.
4000K - natural white light that’s similar to moonlight. It gives off blueish, cool hues.
5000K - most similar to daylight.
It’s energizing and is great for task lighting or any application where you’d need to see a high level of detail.
E-Lite Marvo Series LED wall packs are perfect for illumination to pathways and perimeters, giving pedestrians a greater sense of security around commercial locations, educational institutions, or residences.
Marvo LED wall pack chose the top brand Philips Lumileds LED chip as its standard lighting source which made the whole fixtures system efficacy reach at 160lm/W, and further less power consumption more lighting out. Cutting down the electric bill and improve the lighting level are directly put on the table.
Marvo wall pack light with die cast aluminum housing (Black and Bronze color) provides advanced thermal management and durability, and the UV-resistant tempered glass lens will hold up against the elements. They are IP66 rated for wet locations and easily mount to the wall. This model is CCT tunable, allowing for a selection between multiple color temperature options via an internal switch before or after mounting. The Wall Pack with cut-off, high-output, fixed-cutoff, architectural, or slim-sized fixture. Each wall pack light is so easy to install.
E-Lite wall pack lights are designed and manufactured by the international stander of UL and DLC , and whole series LED wall pack got the UL certificate and then on the quality product list (QPL), which means they’ve been accepted by US market. Moreover, E-Lite QC team makes sure each wall pack light meeting the standard of UL before fixtures ship out from E-Lite factory.
More than 5 different installation accessories Marvo series lights offered made its turn to one powerful luminaire which can be as wall pack light, floodlight, under deck light, area light and tunnel light for both indoor lighting and outdoor lighting.
What kinds of LED Wall Pack Lights are there?
Non-Cutoff – Up-light is allowed.
Full-cutoff – Must have no uplight.
Fixed-cutoff – Reduces light pollution with a glare shield that stays in place.
Architectural – Features a sleek design that’s perfect for applications where aesthetics are important.
High output – Deliver 21,000 lumens by 150 Watt wall pack lights.
Premium – meets requirements set by DLC5.1, UL, CB, CE RoHS
★ Buy one fixture get nine lights;
★ Three wattages in one fixture wall pack, switchable on site;
★ Three CCT also in one fitting, switchable on field;
★ UV-Stabilized black or dark bronze powder-coated finished housing;
★ The durable die-cast aluminum body made the product super solid.
★ Impact and UV-resistant polycarbonate lens is precisely designed to give a specific light distribution.
★ IP66 rating is for complete protection against dust and low-pressure water jet ingress.
★ Application: Commercial, Entryways, Perimeter Lighting, Security
|
Replacement Reference |
Energy Saving Comparison |
|
| 80W MARVO Flood LIGHT | 150 Watt Metal Halide or HPS | 53% saving |
| 100W MARVO Flood LIGHT | 250 Watt Metal Halide or HPS | 60% saving |
| 150W MARVO Flood LIGHT | 400 Watt Metal Halide or HPS | 63% saving |
| Type | Mode | Description |
 |
SR | Sensor Receptacle |
 |
UB | U Bracket |
 |
SA | Side Arm |
 |
SP60 | Slip Fitter |
 |
TR | Trunnion |
 |
KC | Knuckle |
