MarvoTM Solar Flood Light
-
-
Pending - -
-
-
-
-
Pending -
-
-
-
-
|
LED Chip & CRI |
Lumileds 3030 / RA>70 |
||||
|
Power Source |
Solar Powered |
||||
|
CCT |
3000 / 4000 / 5000K / 6000K |
||||
|

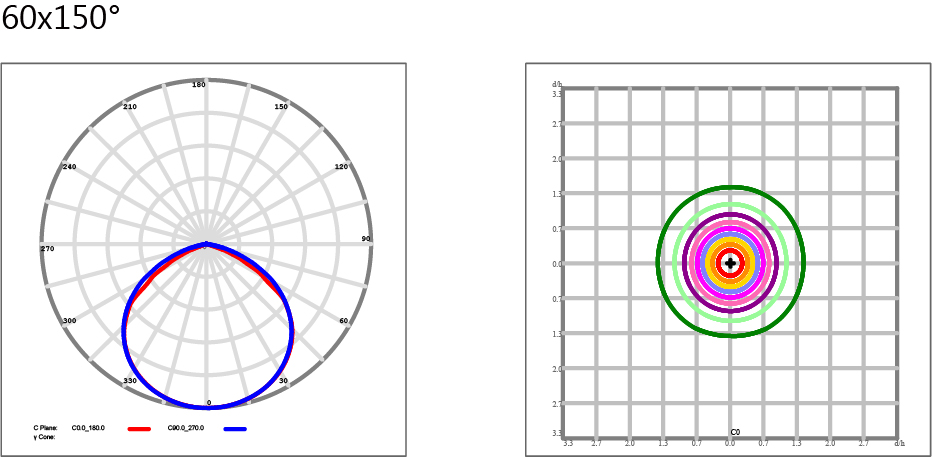

Beam Angle |
60X150° |
||||
|
IP & IK |
IP66 / IK10 |
||||
|
Housing |
Die-cast Aluminum |
||||
|
Solar Panel |
Monocrystalline silicon photovoltaic panels |
||||
|
Panel Capacity |
30W(70W/18V) / 60W(130W/18V) |
||||
|
Battery Type |
Lithium ion Batteries |
||||
|
Battery Capacity |
30W(90AH/12V) / 60W(185AH/12V) |
||||
|
Controller |
EPEVER, Remote Power |
||||
|
Work Time |
Two consecutive rainy days |
||||
|
Lighting status |
4hours-100%, 2hours-60%, 4hours-30%, 2hours-100% |
||||
|
Work Temp |
-30°C ~ 50°C / -22°F~ 122°F |
||||
|
Mount Option |
U Bracket / Slip Fitter / Side Arm / Trunnion / Knuckle |
||||
|
Warranty |
5 Years Warranty |
||||
|
Certificate |
ETL DLC5.1 CB CE RoHS |
||||
|
Model |
Power |
Efficacy(IES) |
Total Lumen |
Dimension |
Net Weight |
|
EL-MVFL-SOLAR |
30W |
140LPW |
5,600lm |
338.5×323×80mm 13.3×12.7×3.15in |
3.5kg / 7.7lbs |
|
60W |
140LPW |
8,400lm |
|||
FAQ
Elite: Yes, this can be mounted to the brick wall. Screws with wall anchors will be included to mount this model to the wall.
Elite: The solar panel must be in direct sun light for at least 6-8 hours per day... This would allow the unit the necessary charge that is needed to power this unit from dusk to dawn daily. Adding an external battery is not necessary for this unit. The normal battery life is 1 to 2 years.
Elite: Yes, you can mount this panel only at the distance of the cord that come with this unit.
Elite: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
E-lite solar flood security lights with solar panels are waterproof and photocell control for garages, swimming pools, streets, signs, billboards.
Powerful monocrystalline silicon solar panels and long life. Extra-large solar panel with rechargeable lithium ion battery can be lit continuously for 6-8 hours after a full charge. Every light comes with a built-in 90AH/12V(30W) or 185AH/12V60W) lithium batteries, which provide the necessary power to let the light work well on sunny days, and even providing proper lighting for days when there is no sunshine.
The solar floodlight will turn on at dusk and automatically turn off when you turn on the floodlight fitting. Durable die-cast aluminium and bright LED output at 60×150 degrees to cover a wide area. In addition, the photocell is the perfect energy and money saving alternative to traditional solar powered security lights. It has a built-in sensor function and a low light sensor that detects up to 33 feet. The range is 60 X 150°. When it is sensed, it flashes for 30 seconds and then automatically switches off.
Solar Safety Light: If you wish to install this solar safety light unit in a shaded area, please note that the solar panel can be mounted up to 15 feet from the actual solar safety light and must be exposed to direct sunlight.
Durability and weather resistance: In addition to providing an excellent combination of light brightness and duration. the E-LITE solar luminaire is known for its physical durability. The monocrystalline solar panels are protected by weather-resistant, cleanable toughened glass, which helps to ensure long-lasting reliability.
Application scenarios include outdoor walls or poles in plazas, parks, gardens, courtyards, streets, car parks, pavements, trails, campuses, farms, perimeter security, etc. The IP66 design is designed to withstand dust and water jets without the fear of rain or any inclement weather.
Easy to install, mount it to the wall with the screws provided and use the solar LED as a ground light, no tools or wiring required.
★ Multi-Power Switchable
★ Replacing Up To 400 MH or 750W PSMA
★ Integrated Visor Reducing Glare
★ High Efficacy Up To 160LPW
★ Die Cast Housing.
★ Water and Dust Tight Seal, IP66
★ 0~10V Dimming
★ 5 Years Warranty
★ UL, DLC Premium CB, SAA, CE, RoHS
| Replacement Reference | Energy Saving Comparison | |
| 40W Solar Flood Light | 100 Watt Metal Halide or HPS | 60% saving |
| 50W Solar Flood Light | 150 Watt Metal Halide or HPS | 67% saving |
| 60W Solar Flood Light | 150 Watt Metal Halide or HPS | 60% saving |
| 80W Solar Flood Light | 250 Watt Metal Halide or HPS | 68% saving |
| 100W Solar Flood Light | 250 Watt Metal Halide or HPS | 60% saving |
| 150W Solar Flood Light | 400 Watt Metal Halide or HPS | 63% saving |
| Image | Product Code | Product Description |
 |
SP-SR | Sensor Receptacle |
 |
SP-UB | Standard U Bracket |
 |
SP-SA | Side Arm |
 |
SP-SF | Slip Fitter |
 |
SP-TR | Trunnion |
 |
SP-KC | Knuckle |
