Marvo^TM Flood Light

Pending -

Multi-Wattage Switchable

With a slim and sleek design, Marvo is a simple, reliable and efficient alternative to general purpose HID floodlights. It is light weight with robust die-cast aluminum housing and corrosion-proof coating, high-reflectance white reflector maximizes output, an integrated visor reduces observable glare, and the tempered glass lens won’t yellow.

Marvo flood light offers substantial SKU reduction with universal mounting and power adjustability. For mounting flexibility, each floodlight fixture includes 4 mounting options, adjustable knuckle, yoke mount, slip fitter and trunnion mount. An integrated dip switch allows field power selection of 80W, 100W and 150W.

A built-in dusk-to-dawn photocell provides added energy savings through increased controllability.

Specifications IES Files Installation Manual

Request Free Sample Deliver To Door Contact

Specifications

Description

Features

Photometrics

Accessories

LED Chip & CRI	Lumileds 3030 / RA>70
Input Voltage	AC100-277V Or 277-480V
CCT	3000 / 4000 / 5000K / 6000K

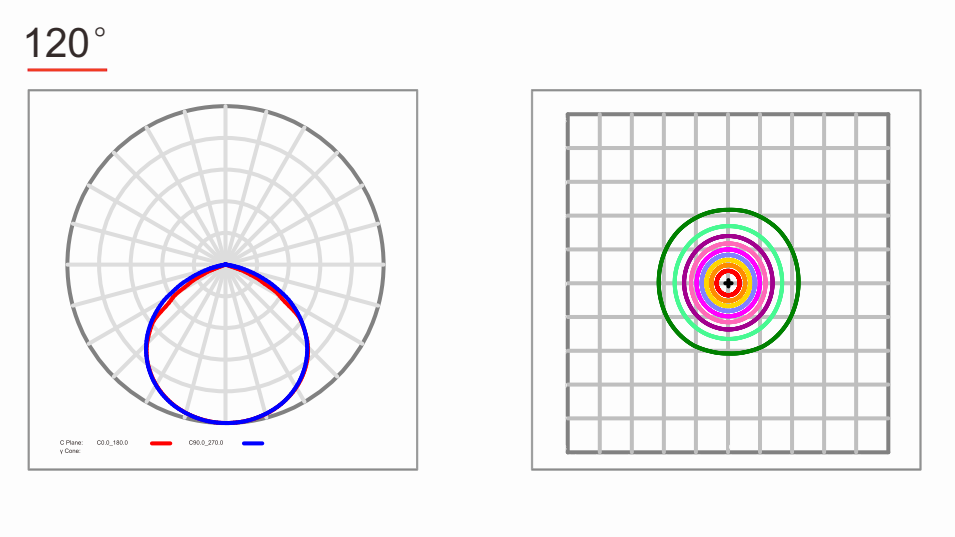

Beam Angle	120°
IP & IK	IP66 / IK10
Driver Brand	Sosen Driver
Power Factor	0.95 minimum
THD	20% Max
Housing	Die-cast Aluminum
Work Temp	-30°C ~ 50°C / -22°F~ 122°F
Mount Option	U Bracket / Slip Fitter / Side Arm / Trunnion / Knuckle
Warranty	5 Years Warranty
Certificate	ETL DLC5.1 CB CE RoHS
Model	Power	Efficacy(IES)	Total Lumen	Dimension	Net Weight
EL-MVFL-MW(80/100/150)T	150W	140LPW	21,000lm	338.5×323×80mm 13.3×12.7×3.15in	3.5kg / 7.7lbs
	100W	148LPW	14,800lm
	80W	150LPW	12,000lm

FAQ

Q1: Are you a manufacturer?

E-LITE: Yes, our factory with over 15 years R&D and manufacture experience base on ISO quality management.

Q2. Can I have a sample order for led flood light?

E-LITE: Yes, sample order to test and check quality is welcomed. Mixed samples are acceptable.

Q3. How about the lead time of flood fixture light?

E-LITE: 5-7 days for sample order, 15-25 days for mass production order base on order quantities.

Q4: How do you ship the finished products?

E-LITE: By SEA, AIR or Express(DHL,UPS,Fedex,TNT,etc) are optional.

Q5: Is it OK to print my logo on floodlight?

E-LITE: Yes, OEM service available, we can help to make the label and color box according to your requirements.

Q6: How to proceed an order for led light?

E-LITE: Firstly, please let us know your detail requirement and application environment, secondly we will recommend some suitable products and solutions to you according to your request. Thirdly, after confirm all the details, customers will issue the purchase order and make the payment to confirm, and then we start for the production and arrange the shipment.

Q7: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Previous: New Edge^TM Modular Street Light

Next: Marvo^TM Flood Light

An LED floodlight is a broad-beamed, high-intensity artificial light, which are often used to illuminate outdoor playing fields while an outdoor sports event is being held during low-light conditions. With special 60X150° lens design, E-Lite Morvo series LED flood light are the best choice for sports fields, stadiums, parking lots and many other large areas.

E-Lite Marvo series flood light features multiple wattage options design, which means you can change the power through the dip switch by hand. E-Lite MARVO Series LED floodlight offers a large selection of SKU reduced to just one model, which can handle multiple 3 wattage options like 80 watt, 100 watt and 150 watt.

Rugged one-piece die-cast heatsink design not only makes the flood light looks excellent, but also performs superior heat dissipation for L70>120,000 hours lumen maintenance. So 5-10 years warranty can be supplied by E-lite, a professional manufacturer which has more than 15 years of history in LED Industrial lighting production and application.

150 lumens per wattage Marvo series flood light is outdoor light fixture designed to strategically illuminate the backyard, driveway, patio, and other areas that lack lighting, which can save up to 65% in energy use compared to the traditional metal halide or HPS lightings. More light with fewer fixtures also can help you save big money not from the lamp cost but also the lamp installation and maintenance.

With optional microwave motion sensor or photocell, the end-users practice to switch controller to achieve low, medium, high brightness and illumination to the outdoor ground, and given them more comfortable, experience and security lighting. In low light levels, the sensor turns on the light when motion is detected. After a hold time, the sensor dims the lamp at a low light level if no new motion trigger. For the final standby time, the sensor switches off the lamp if no motion is detected in its detection zone. So the Marvo series flood light can be used as security lights to warding off intruders.

★ Reduce SKUs with selectable wattage and lumens output.

★ Bult-in dusk to dawn sensor & photocell, automatically turn on/off.

★ Rugged cast-aluminum, corrosion-resistant housing in bronze finish.

★ Tempered glass lens is fully gasketed to protect LEDs and keep out moisture, dirt and bugs.

★ Precision optics and reflector for maximum light output.

★ Mount easily to existing bracket on wall or under eave. Adjustable head allows precise illumination.

★ ETL Listed to US and Canadian safety standards.

★ IP66 for wet locations.

Replacement Reference		Energy Saving Comparison
80W MARVO Flood Light	150 Watt Metal Halide or HPS	53% saving
100W MARVO Flood Light	250 Watt Metal Halide or HPS	60% saving
150W MARVO Flood Light	400 Watt Metal Halide or HPS	63% saving
