LiteProTM Tunnel Light
  • CE
  • Rohs

E-Lite LitePro combines compact design, reliability, and affordability in one complete package to bring the perfect lighting solution for any tunnel application.

Its professional optics ensure safety and good visibility which is a key element in the success of any tunnel project. With its modular design, modern LED architecture, and wide choice of mounting systems, LitePro is a versatile, cost-effective luminaire that meets the most stringent tunnel lighting requirements.

Specifications

Description

Features

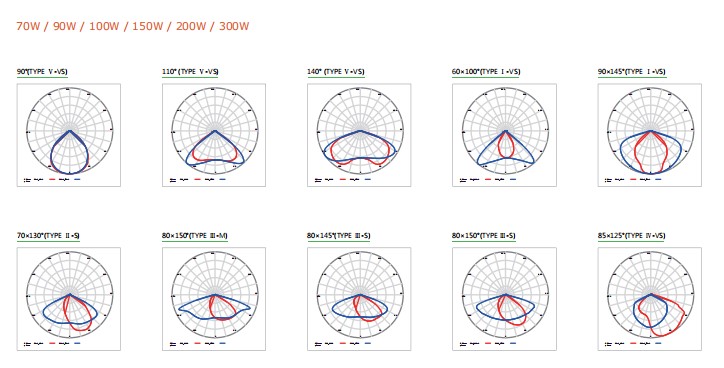

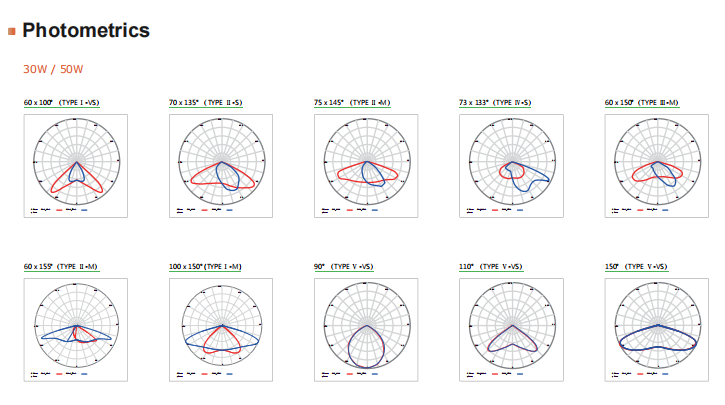

Photometrics

Accessories

LED Chip & CRI

Lumileds 3030 / RA>70

Input Voltage

AC100-277V Or 277-480V

CCT

3000 / 4000 / 5000K / 5700K/ 6500K

Beam Angle

60x100°70x135°75x145°73x133°60x150°80x150°80x145°100x150°

IP & IK

IP66 / IK10

Driver Brand

Sosen Driver(1-10V Dimmable)

Power Factor

0.95 minimum

THD

20% Max

Housing

Aluminum Alloy(White/Black/Gray color option)

Work Temp

-30°C ~ 50°C / -22°F~ 122°F

Mount Option

Standard U Bracket

Warranty

5 Years Warranty

Certificate

ETL DLC CB CE RoHS



Model

Power

Efficacy(IES)

Total Lumen

Dimension

Net Weight

EL-TLXT-30

30W

150LPW

4,500lm





338×115×115mm





2.0kg/4.4lbs

EL-TLXT-50

50W

137LPW

6,850lm

EL-TLXT-70

70W

140LPW

98,00lm

EL-TLXT-90

90W

125LPW

11,250lm

EL-TLXT-100

100W

135LPW

13,500lm

EL-TLXT-150

150W

140LPW

21,000lm

350×228×115mm

3.0kg/6.6lbs

EL-TLXT-200

200W

135LPW

27,000lm

EL-TLXT-300

300W

135LPW

40,500lm

350×325×115mm

4.0kg/8.8lbs

FAQ

Q1: How about the samples quantity, or if have MOQ?

Elite: Yes, we welcome sample order to test and check quality, mixed samples are acceptable and NO MOQ.

Q2. What about lead time for sample or mass orders?

Elite: Sample needs 3-5 days, mass productions time needs about 25 days for large quantity.

Q3.ODM or OEM is accepted?

Elite: Yes, we can do ODM&OEM, put your logo on the light or package both are available.

Q4.Do you offer the guarantee for the products?

Elite: Yes, we offer 5 years warranty to our products.

Q5.How do you ship the goods and how long does it take to arrive?

Elite: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and shipping are also optional.

Q6.How is the after sales service?

Elite: We have a professional team which is in charge of after-sales service, also a service hot-line handling the claims and feedback.


  • Previous:
  • Next:

  • E-Lite LitePro Series Tunnel Light delivers 150lm/W max for the system efficacy using the top brand LED chips and Philips Lumileds LED package, which can guarantee the long lifespan more than 100000hours (L70).

    The modular design with corrosion resistant and industrial-grade extrusion aluminum is easily to enrich the product range from 30W to 300W to suitable different sizes of tunnels, and more over the tunnel lights with this structure will be easy, faster and economical to maintain. Surface treatment on fixture for outdoor lighting E-Lite takes the top brand AnkzoNobel coating powder are super durable even under the unpredictable weather.

    LitePro Tunnel Lights reliability and affordability in one complete package to bring the perfect lighting solution for any tunnel applications. Waterproof and dustproof IP66 grade and high impact IK10 grade ensure its normal operation in the temperature range of -22° + 122° F and in various applications and climates. The tunnel lamp itself has more than 13 types of optical lenses for customers to choose from. Professional lighting designer with experiences to operation Dialux and other’s software to help you achieve the simulation & photometric purpose and it’s the key to success get the projects and bid other’s competitor. Furthermore, we can custom made the lens of beam angles for the special project requirements.

    E-Lite LED tunnel lights are designed to address the complex nature of lighting the tunnel application. The highly engineered optical, mechanical and electrical ecosystem delivers quality white light, high lumen out and great uniformity to provide excellent visibility for driver safety and visual comfort. Specialized tunnel optics optimized for such application distributes the light as evenly as possible over the road with minimal disturbance of the vision by glare and blinding.

    LitePro series tunnel light has passed the 3G vibration testing according to the roadway lighting standards, which is extremely important for tunnel light projects. When it was well installation, there is no risk of the drop of fixture components after it installed 1-2years.

    ★ Flexible, modular design, easy to maintenance and replace.

    ★ Multiple choices, high precision optical Lenses with different beam angles over 13 types. No risk of turn yellow after 3-5 years.  High brightness with better lumen maintenance rate.

    ★ Adopted brand of Lumileds, Light efficiency>140LM/W, SDCM<5 high uniformity.

    ★ Super 6063 aluminum alloy, air convection design, and better heat dissipation.

    ★ Quality 304 stainless steel screws;

    ★ Internal wiring is waterproof, safe, Convenient;

    ★ Lumen Maintenance – L70>120,000 hours(TM-21 Calculator)

    Replacement Reference Energy Saving Comparison
    30W Litepro Flood Light 75 Watt Metal Halide or HPS 60% saving
    50W Litepro Flood Light 150 Watt Metal Halide or HPS 66% saving
    70W Litepro Flood Light 250 Watt Metal Halide or HPS 72% saving
    90W Litepro Flood Light 400 Watt Metal Halide or HPS 77% saving
    100W Litepro Flood Light 400 Watt Metal Halide or HPS 75% saving
    150W Litepro Flood Light 400 Watt Metal Halide or HPS 63% saving
    200W Litepro Flood Light 700 Watt Metal Halide or HPS 71% saving
    300W Litepro Flood Light 1000 Watt Metal Halide or HPS 70% saving

    Tunnel Light522 Tunnel Light522

    Image Product Code Product Description
    BK01 BK01 Universal Bracket
