LiteProTM Flood & Area Light
  • ETL
  • dle
  • CE
  • Rohs

LitePro rectangular shaped and exterior-rated LED floodlight. The robust mechanical design and high-efficient optical design make it ideal for any types of commercial and industrial installation. Independent modular LED engines and driver protect lifespan with improved thermal management. Replace metal halide or HID luminaires with increased energy savings, better efficacy, and a more compact housing.

LitePro is IP66 rated for operation in wet environments and all weather conditions including high humidity, wind and rain. Choice of mounting accessories makes it easy for wall mount, surface mount, or pole mount. Yoke mount accommodates both high bay and floodlight applications.

Specifications

Description

Features

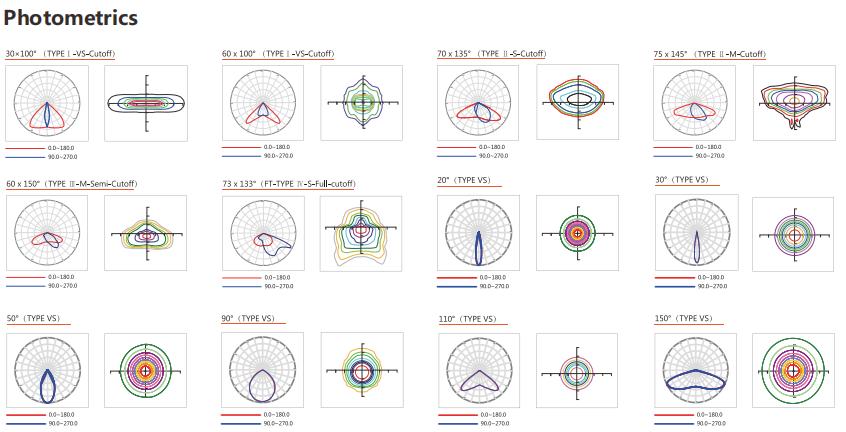

Photometrics

Accessories

LED Chip & CRI

Lumileds 3030/Ra>70

Input Voltage

AC100-277V Or 277-480V

CCT

3000 / 4000 / 5000K / 5700K/ 6500K

Beam Angle

20°30°50°90°110°30x100°60x100°70x135°75x145°60x150°73x133°

IP & IK

IP66 / IK10

Driver Brand

Sosen Driver

Power Factor

0.95 minimum

THD

20% Max

Housing

Aluminum Alloy(White/Black/Gray color option)

Work Temp

-30°C ~ 50°C / -22°F~ 122°F

Mount Option

Standard U Bracket

Warranty

5 Years Warranty

Certificate

ETL DLC5.1 CB CE RoHS

Model

Power

Efficacy(IES)

Total Lumen

Dimension

Net Weight

EL-FLGP-30

30W

130LPW

3,900lm

338×115×115mm

3.2kg/7.1lbs

EL-FLGP-50

50W

130LPW

6,500lm

EL-FLGP-100

100W

140LPW

14,000lm

338x228x115mm



5.3kg/11.7lbs

EL-FLGP-150

150W

140LPW

21,000lm

EL-FLGP-200

200W

140LPW

28,000lm

EL-FLGP-250

250W

130LPW

32,500lm

338x328x115mm

6.7kg/14.8lbs

EL-FLGP-300

300W

140LPW

42,000lm

EL-FLGP-400

400W

130LPW

52,000lm

338x418x115mm

8.1kg/17.9lbs

EL-FLGP-600

600W

130LPW

78,000lm

338x608x115mm

11.8kg/26.0lbs


  • Previous:
  • Next:

  • E-Lit Litepro Series floodlight was born from the idea of classic and flexible. This type flood light design made more possible in wattage range and lumen output. Modular floodlights gave the 30W to 600W fixtures which can be applied into the different facilities, like, Parking lots, Auto dealerships, Billboard, Façade, Wall Washing, Landscape, sport complex, and general outdoor lighting.

    Solid corrosion resistant extrusion aluminum modular heat sinks with its tough fixture confirmation made whole Litepro flood light reach at the level of industrial grade. Such solid flood light with high ingress protection IP66 after durable surface treatment is more suitable for the outdoor lighting application.

    More than 11 different lenses which made of the PC 3000U also offer the different lighting distribution that can suitable for various lighting solutions and projects for such large ocean area. Moreover, they bring high brightness with better lumen maintenance rate.

    These flood fixtures equipped the top brand Philips Lumileds LED package with high efficacy providing a lumen output 78000lm equal to 1500 Watt MH/HPS and can reduce the lighting bill between 60% or more. Due to the high performance o thermal dissipation, Litepro flood light has a lifespan of 120,000 (L70) hours, these lights/fixtures will last 10+ years under normal conditions. This LED light/fixture will save a lot of money with lowered lighting bills and maintenance costs over its lifetime. Maintenance-free energy efficient LEDs with over 50,000-hour of life (equivalent to 15-year of life at 10-hour per day), eliminating your need to use and replace bulbs.

    Litepro series floodlight with 360°adjustable bracket with special installation screws hole design, making it easy and fast mount on the cross arms, wall, ceiling of the room and tunnels. Moreover, for high mast lighting and sports lighting, its drivers can be split mount on somewhere the engineers can easy maintenance them if some of them are failed.

    Always 5 years warranty company with E-Lite Litepro flood light, but 10 years warranty still available according to special demands.

    ★ Flexible, modular design, easy to replace and maintenance.

    ★ Multiple choices, high precision optical Lenses with different beam angles for options,

    ★ Philips Lumileds LED Chips, High efficiency>140LM/W, SDCM<5 high uniformity.

    ★ Using 6063 Fin-type aluminum heat, air convection design, and Better heat dissipation.

    ★ Fade resistant powder coat finish ensure outdoor performance

    ★ Whole fixture ingress protection reaches at IP66 rating

    ★ Long lifespan >120,000 hours

    Replacement Reference

    Energy Saving Comparison

    30W Litepro Flood Light

    75/100 Watt Metal Halide or HPS

    57/60% saving

    50W Litepro Flood Light

    150 Watt Metal Halide or HPS

    66% saving

    100W Litepro Flood Light

    250 Watt Metal Halide or HPS

    60% saving

    150W Litepro Flood Light

    400 Watt Metal Halide or HPS

    63% saving

    200W Litepro Flood Light

    400/750 Watt Metal Halide or HPS

    50/73% saving

    250W Litepro Flood Light

    750 Watt Metal Halide or HPS

    66% saving

    300W Litepro Flood Light

    1000 Watt Metal Halide or HPS

    70% saving

    400W Litepro Flood Light

    1000 Watt Metal Halide or HPS

    60% saving

    600W Litepro Flood Light

    1500 Watt Metal Halide or HPS

    60% saving



    Litepro Flood1

    Type Mode Description
    UB32 UB32 U Bracket
    UB60 UB60 U bracket
    SP60 SP60 Slip fitter
