LiteProTM Linear High Bay
-
-
-
-
-
| Parameters | |
| LED Chips | Philips Lumileds |
| Input Voltage | 100-277 VAC (347/480 VAC Optional) |
| Color Temperature | 4500~5500K (2500~5500K Optional) |

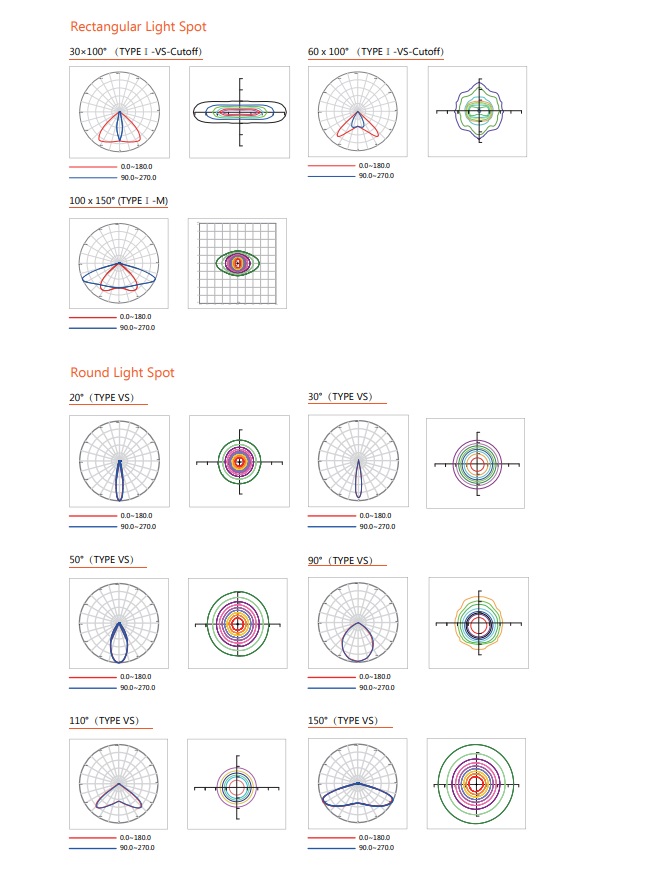

| Beam Angle | 30×100°, 60 x 100°, 100 x 150°, 20°, 30°, 50°, 90°, 110°, 150° |
| IP & IK | IP66 / IK10 |
| Driver Brand | Sosen Driver |
| Power Factor | 0.95 minimum |
| THD | 20% Max |
| Dimming / Control | 1-10V Dimmable |
| Housing Material | Aluminum Alloy |
| Work Temperature | -40 to 50°C / -40 to 122°F |
| Mount Kits Option | Chain Mount / Surface Mount Bracket |
|
Model |
Power |
Eifficacy(IES) |
Lumens |
Dimension |
Net Weight |
|
EL-LNGP-50 |
50W |
135LPW |
6,750lm |
320x110x118mm |
2.0kg/4.4lbs |
|
EL-LNGP-100 |
100W |
145LPW |
14,500lm |
620x110x118mm |
3.2kg/7.1lbs |
|
EL-LNGP-150 |
150W |
145LPW |
21,750lm |
920x110x118mm |
4.7kg/10.4lbs |
|
EL-LNGP-200 |
200W |
145LPW |
29,000lm |
1220x110x118mm |
6.1kg/13.4lbs |
FAQ
E-Lite Semiconductor Co., Ltd. has 15 years of led lighting manufacturing experience in China and 12 years international LED lighting business experience. ISO9001 and ISO14000 support. ETL/DLC/CE/CB/RoHS/SAA certificates support for different products. We always keep our client's profits and never play the price game in the market.
E-lite: Firstly, let us know your requirements and application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and arranges deposit for formal order.
Fourthly, we arrange the production according to customer's requirements .
Finally,customer arranges balance payment before shipment arrangement.
E-lite: Qualityis priority. E-lite people always attach great importance to quality control from the beginningto the end of production. All products will be fully assembled and carefully tested before being packed for shipment.
E-lite: Litepro linear high bay main applications are Warehouse/Manufacturing Facilities, Convention Centers/Sporting Arenas, Big-Box Retail Stores, Cold Storage Facilities, Gymnasiums.
E-lite: Of course. Litepro linear is designed for high shelf and it offers a dedicated optic solution for high-shelf warehouse by maximizing effective lighting to cargo and corridor while eliminating light waste on the top of the shelves.
E-lite: Sports light & Flood light, Roadway Lighting, High Bay for 80℃/176℉ Ambient Temp, Engineering & Heavy-duty Lighting, Area Lighting & High Mast Lighting, High Bay for General Uses, Wall Pack, Canopy Lighting, Tri-proof Linear Luminaire, etc.
E-Lite LitePro Series linear high bay lights offers the market more options where the general high bay fixtures cannot meet the demands on the application and even the out shape. Considering the special lighting demands as high bay lights for more accurate lighting application and more energy saving, LitePro is designed with linear style to match the corridor lighting demands in the storage area of warehouse or some open area for aisle lighting.
LitePro linear lights still use the independent thermal management conception, taking the individual LED modules which power up to 50W for each one. Top advantage of the structures made this series lighting super flexible, the max power can be reached to 200W with 4 led modules. Meanwhile, it also can transformer to two bars according to demands on marketing. Most of important, each led module can work independently, even one of them break down, the others still work, which did not affect the working.
Litepro series LED high bay adopts high-efficiency and long-life LED light source, with soft light and no glare. The 3030 lumileds LED chips and high-efficiency lens module make the overall luminous surface uniform without dark spots. More energy-saving and environmental protection, no ultraviolet and infrared pollution are in line with EU RoHS requirements. Even if the switch is started frequently, there is no flicker and glare.
Simple and slim appearance, novel style, high-end, easy installation and transportation are always the characteristics of LitePro linear high bay light. The waterproof and dustproof grade can reach IP66 which is most applied to outdoor lighting, the lamp body material is aluminum alloy and the impact resistance is strong as high to IK10, optical grade PC lens, excellent anti-aging properties.
There are two installation methods for LitePro Series Linear High Bay light, which are chain mount and surface mount bracket and they can be realized through different accessories. It is convenient for clients to choose to use such two different installation parts, of course, two mount accessories can equipped the high bay fixture together.
★ System Light Efficacy 135~145 LPW
★ Flexible, Modular Design
★ 11 Types of Optical Lenses at Choice
★ Easy Installation & Maintenance
★ IP66
★ Five Years Warranty
★ cETLus DLC Premium CE RoHS Compliant
| Replacement Reference | Energy Saving Comparison | |
| 50W LITEPRO SERIES HIGH BAY | 150Watt Metal Halide or HPS | 66.7% saving |
| 100W LITEPRO SERIES HIGH BAY | 250Watt Metal Halide or HPS | 60% saving |
| 150W LITEPRO SERIES HIGH BAY | 400Watt Metal Halide or HPS | 62.5% saving |
| 200W LITEPRO SERIES HIGH BAY | 600Watt Metal Halide or HPS | 66.7% saving |
| Image | Applicable Power | Product Description |
 |
50W~200W | SP-CM: Chain Mount |
 |
50W~200W | SP-SM: Surface Mount Bracket |
