AuroraTM UFO High Bay
-
-
-
-
-
-
|
LED Chip & CRI |
Lumileds 3030 / RA>80 |
|||||
|
Input Voltage |
AC100-277V Or 277-480V |
|||||
|
Beam Angle |

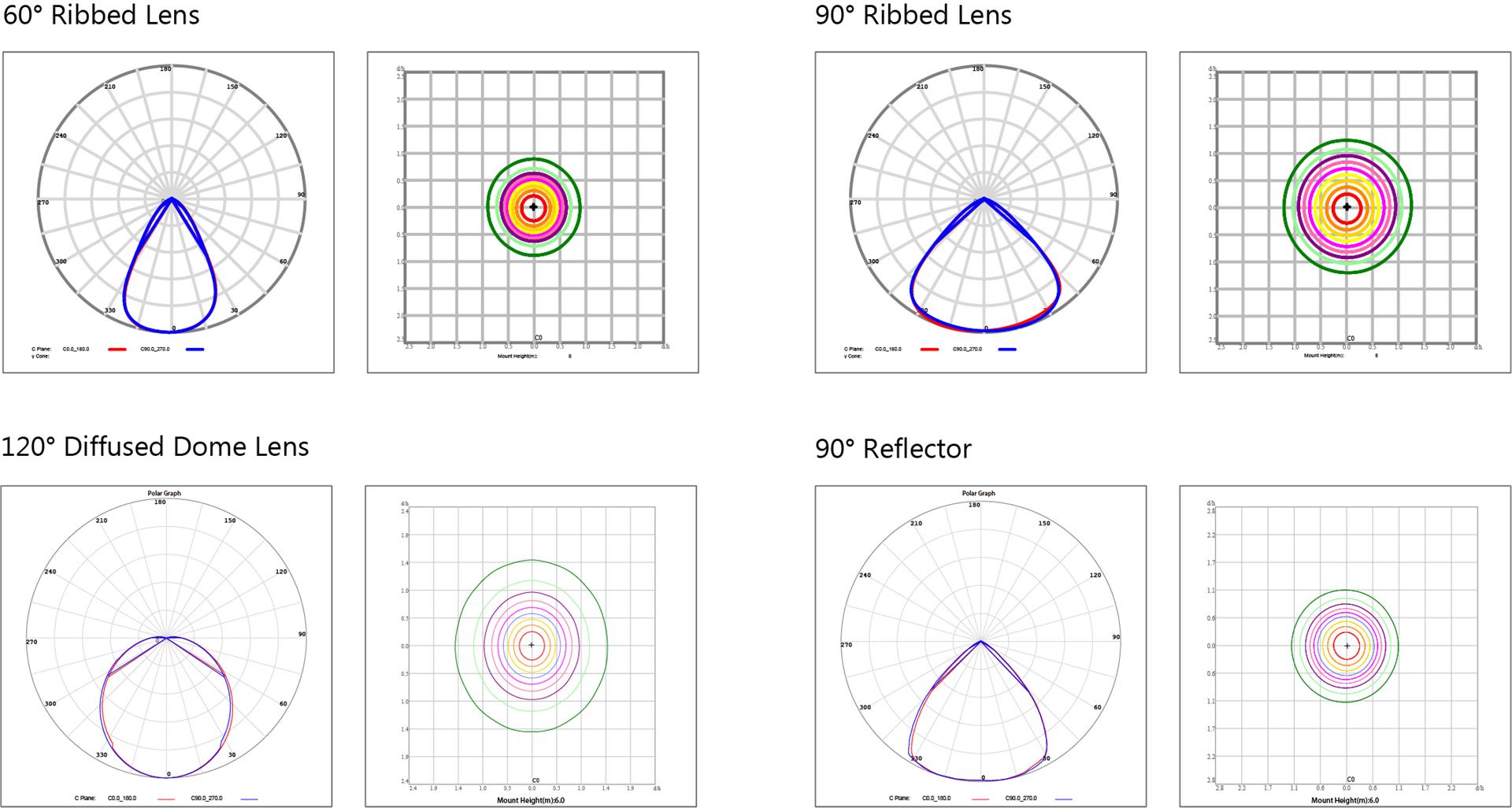

60°90°120°Clear & Frosted and 90°Reflector |
|||||
|
IP & IK |
IP66 / IK10 |
|||||
|
Driver Brand |
Sosen Driver |
|||||
|
Power Factor |
0.95 minimum |
|||||
|
THD |
20% Max |
|||||
|
Dimming Control |
1-10V Dimming / Plug-and-play Microwave Motion Sensor |
|||||
|
Housing Material |
Die-cast Aluminum with black color or white color |
|||||
|
Work Temp |
-30°C ~ 50°C / -22°F~ 122°F |
|||||
|
Mount Option |
Hang Ring / U Bracket / 1/2’ NPT / Chain Mount |
|||||
|
Warranty |
5 Years Warranty |
|||||
|
Certificate |
ETL DLC5.1 CB CE RoHS |
|||||
|
Model |
CCT |
Power |
Efficacy(IES) |
Total Lumens |
Dimension |
Net Weight |
| EL-AUHB-MW(80/100/150)T - MCCT (30K/40K/50K) | 3000K |
80W |
155LPW |
124,00lm |
280×280×169mm
11×11×6.7in |
2.8kg/6.17lbs |
|
100W |
150LPW |
15,000lm |
||||
|
150W |
145LPW |
21,750lm |
||||
| 4000K |
80W |
175LPW |
14,000lm |
|||
|
100W |
175LPW |
17,000lm |
||||
|
150W |
165LPW |
24,750lm |
||||
| 5000K |
80W |
160LPW |
12,800lm |
|||
|
100W |
155LPW |
15,500lm |
||||
|
150W |
150LPW |
22,500lm |
||||
FAQ
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A2: Samples need 3-5 working days, mass products need 15-25 days.
A3: Low MOQ, 1pc for sample checking is available.
A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
A5: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
A6: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A7: Yes, we offer 5 years warranty to our products.
A8: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Need a new lighting solution, but without the big investment hurdle that comes with it? Aurora has the answer. With the Multi-Wattage & Multi-CCT Switchable services, you don’t need to make a big one-off investment in luminaires and other hardware. Because its Multiple-Wattage field & Multi-CCT switchable version provides significant inventory reduction for inventory providers and increases the flexibility and convenience of the site. The principle is that the dip switch can realize the conversion between different powers (80W, 100W, 150W) and different color temperature (3000K, 4000K, 5000K) . You benefit from the latest lighting technology and ongoing service and support, with minimal capital outlay.
Preinstalled hook makes installation easy. Simple replacement for existing lights or for new installation, Aurora hang ring with M10 threads for alternate install. Product Weight only 6.17LB for easy handling. An IP66 suspension Aurora High Bay luminaire with Plug-and-play Microwave Motion Sensor for rapid installation is available in 12,400lm to 22500lm.
Aurora UFO LED high bay Multi-Wattage & Multi-CCT Switchable luminaire with wide beam optic such as 60°, 90°, 120° Clear & Frosted and 90°Reflector, equipping Sosen driver for 100-277 VAC, 100-347VAC, 277-480VAC Input Voltage. Its die-cast aluminum housing reaches at the high impact protection, IK10. The above configuration is the best evidence that you choose Aurora for such solid industrial application..
Our company has professional experience to illumination interior spaces with high ceilings. Perfect for ceilings ranging from 20 feet to 45 feet, high bay lights like the UFO 150W are energy-efficient and effective. Use this as an easy solution for replacing standard linear high bays for interior lighting today. UL listed for safety and DLC Premium 5.1 for energy rebates. DLC stands for Design Lighting Consortium and verifies actual light performance. They come with hanging wires and eye bolts and can be used with different motion sensors making them versatile indoor lights for interior spaces.
CERTIFICATION & WARRANTY: E-Lite Aurora Series High Bay provides a 5 year warranty along with UL, DLC Premium CE, RoHS Pending CB, SAA certifications.
★ Precise die-cast Aluminum heat sink increase more airflow for better heat dissipation.
★ LED and heat sink are parallel, no dark area, no shadow.
★ Lighter weight and smaller volume can help customer save freight cost.
★ Mutiple Wattage & CCT field switchable by end users easily.
★ Waterproof IP66 design, suitable to damp & wet location.
★ Built-in 6kV surge protector (PS/CS) or 4kV surge protector (Dedicated Versions)
★ Ambient operating temperature: -40ºC/-40ºF to 50ºC/122ºF
| Replacement Reference | Energy Saving Comparison | |
| 100W AURORA UFO HIGH BAY | 250 Watt Metal Halide or HPS | 60% saving |
| 150W AURORA UFO HIGH BAY | 400 Watt Metal Halide or HPS | 62.5% saving |
| 200W AURORA UFO HIGH BAY | 600 Watt Metal Halide or HPS | 66.7% saving |
| 250W AURORA UFO HIGH BAY | 600 Watt Metal Halide or HPS | 58.3% saving |
| 300W AURORA UFO HIGH BAY | 1000 Watt Metal Halide or HPS | 70% saving |
| Image | Product Code | Product Description |
 |
SP-SE | Plug-and-play Microwave Motion Sensor |
 |
SP-HR | Hang Ring |
 |
SP-HK | Hook Ring |
 |
SP-UB | Standard U Bracket |
 |
SP-NPT | 1/2' NPT Nipple |
 |
SP-CM | Chain Mount |
 |
SP-60PC | 60° Ribbed Lens (PC) |
 |
SP-90PC | 90° Ribbed Lens (PC) |
 |
SP-120PC | 120° Diffused Dome Lens (PC) |
 |
SP-TS-90PC | 90° Reflector (PC) |
 |
SP-PM | Protection Mask |
