Hercu^TM General Purpose Bulkhead Light

With sturdy die-cast aluminum enclosure, toughened glass cover, silicone rubber sealing gasket and stainless steel fixings, Hercu is a general-purpose luminaire, offering a versatile solution for many applications, especially in exposed conditions with high levels of dust and moisture. provides a white, instant light that is highly visible. Clean lines and powder coated finish give it a classic, appealing design to compliment both interior and exterior spaces.

The bulkhead is simple to install, easy to maintain and durable. Designed for low profile applications, it is an impact resistant luminaire to be mounted on walls, handrails and ceilings making it ideal for walkways, stairwells, platforms, tunnels, subways and exit routes, or restricted height areas to enhance facility safety with reliable, maintenance-free pathway lighting.

Specifications IES Files Installation Manual

Request Free Sample Deliver To Door Contact

Specifications

Description

Features

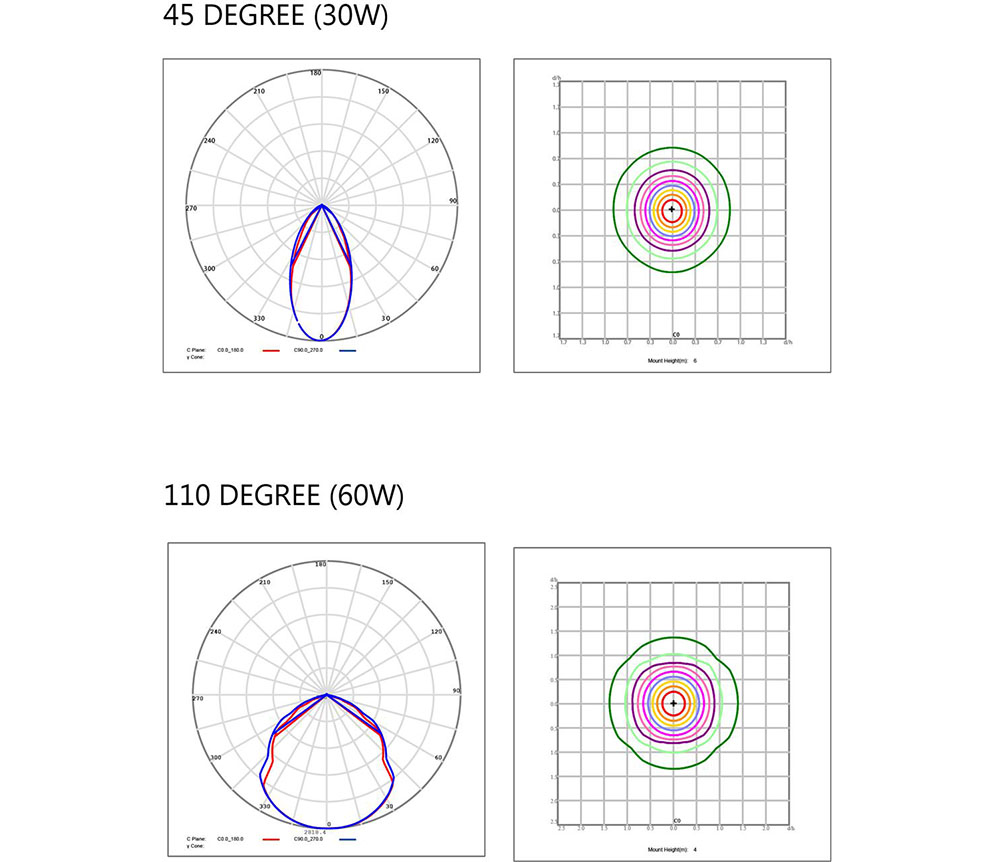

Photometrics

Accessories

Parameters
LED Chips	Philips Lumileds
Input Voltage	AC 100-277V
Color Temperature	3000 / 4000 / 5000K / 5700K/6500K
Beam Angle	45° or 110 °
IP & IK Rating	IP66 / IK08
Driver Brand	Sosen Driver
Power Factor	0.95 minimum
THD	20% Max
Work Temperature	-40°C ~ 50°C / -40°F~ 122°F
Storing Temperature	-40°C ~ 80°C / -40°F~ 176°F
Mount Kits Option	Wall mount / Surfaced mount

Model	Power	Efficacy(IES)	Lumens	Dimension	Net Weight
EO-BHHC-30	30W	120LPW	3,600lm	257.5×174×127mm	3.6kg/7.9lbs
EO-BHHC-60	60W	120LPW	7,200lm	257.5×174×127mm	3.4kg/7.6lbs

FAQ

Q1: What's power of the bulkhead light?

E-LITE: Our Hercu series just have 30W and 60W.

Q2: How many lumens does a bulkhead light have?

E-LITE: Our bulkhead lights system efficacy is 120lm/W, and up to 7200lm for 60W light.

Q3: How many energy can save with a bulkhead?

E-LITE: Compared with traditional source of bulkhead, our light can save energy up to 66% to 70% with LED source.

Q4: What is the difference your bulkhead with other lights?

E-LITE: Our bulkhead light using the robust material for die casting housing, equipped the top brand led source to make sure its high system efficacy. 5 years warranty always supported directly from factory.

Q5: Can a bulkhead be used for emergency lighting?

E-LITE: Yes, it can be used as emergency lighting but it should be packed the battery. If you need our bulkhead with emergency function, please direct tell us when you place a order.

Previous: Victor^TM General Purpose Industrial Light

Next: Icon^TM Street Light

LED Bulkhead lights are a practical and functional light source typically used outdoor and in large indoor spaces like car parks, warehouses and other large commercial buildings. E-Lite’s LED bulkhead lights are sturdy enough for use in any tough permanent outdoor application, yet stylish enough to be the light source of choice as work light installed on the Auto, as fixture installed on the mini tunnel, under deck luminaire and the same environment.

The top-quality aluminum of the rectangle -shaped lamp body and its large size display the classic appearance of this LED bulkhead light made in a fashion style, the PC lens creates a soft and visually appealing lighting effect.

This bulkhead light is waterproof in terms of structural design and material use. And the connections between the light and wall must be sealed to avoid water damage. The wet location waterproofing and professional design let this light work in the rain and other weather conditions.

The light body is made of top quality aluminum material and shows the exquisite and classical appearance of this LED bulkhead light.

The long 10,000hrs lifespan reduces the need for annoying frequent replacement and maintenance, saving bill for less pay.

The protective lampshade is made of transparent outer PC lens cover with good transmittance, adding a soft lighting and visual appeal to your space at night. LED Light Source has been built into this fixture, as one piece no bulbs to replace.

The outdoor bulkhead is easy to install, detailed installation steps are listed in the instruction sheet, and the required accessory parts are included in the package, it will only take a few minutes before you complete the whole process.

The bulkhead products are made by a professional manufacturer which has more than 13 years of history in lighting fixture production.

Classic design, no need for spill shade, easy to use, light weight and complete accessories, easy to install and remove, high installation efficiency, save more cost, fully meet your needs.

The bulkhead fixture can be used as a wall mount or ceiling mount light for commercial or industrial setting. Improve the look of your porch, patio, deck, boathouse or dock with this stylish but functional light.

★ Die-cast aluminum housing

★ Yellow, White or Black powder-coat finish

★ PC 3000U durable outdoor lens material

★ Robust and energy efficient.

★ Offers various mounting options.

★ IP66

★ IK10

RECOMMENDED USE

★ Residential

★ Security

★ Accent

★ Loading Dock

★ Conveyor

★ Workshop

★ Platform

Replacement Reference		Energy Saving Comparison
30W LUNA LINEAR LIGHT	70 Watt Metal Halide or HPS	60% saving
60W LUNA LINEAR LIGHT	125/150 Watt Metal Halide or HPS	66.7% saving
