Festa Series Urban Lighting
| Parameters | |
| LED Chips | Philips Lumileds |
| Input Voltage | 100-277 VAC (200-480VAC Optional) Dimming Optional |
| Color Temperature | 4500~5500K (2500~5500K Optional) |

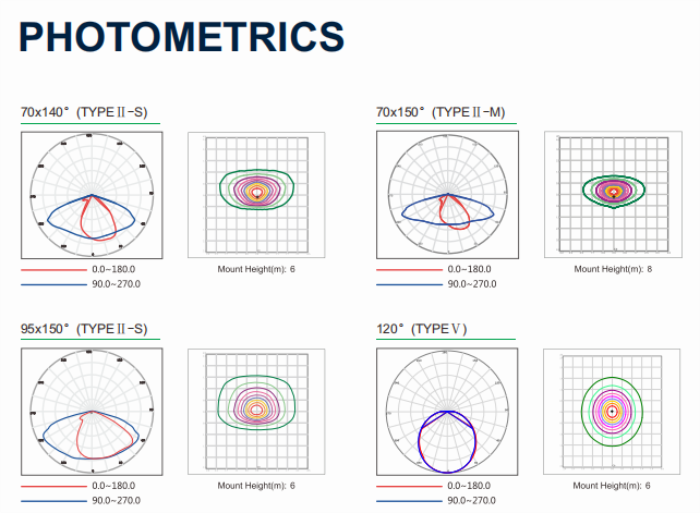

| Beam Angle | 70x140°(TYPEⅡ-S) 95x150°(TYPEⅡ-S) 70x150°(TYPEⅡ-M) 120°(TYPEⅤ) |
| IP & IK | IP66 / IK09 |
| Driver Brand | Sosen Driver/1-10V dimmable |
| Power Factor | 0.95 minimum |
| THD | 20% Max |
| Dimming / Control | 0/1-10V Dimming / NEMA Twist-locked Photocell |
| Housing Material | Die-cast Aluminum |
| Work Temperature | -45°C ~ 45°C / -49°F~ 113°F |
| Mount Kits Option | Post Top/Suspension/Bracket |
|
Model |
Power |
Eifficacy(IES) |
Lumens |
Dimension |
Net Weight |
|
EL-UBFT-30 |
30W |
130LPW |
3,900lm |
545×465×715mm |
7.6kg |
|
EL-UBFT-60 |
60W |
130LPW |
7,800lm |
7.6kg |
|
|
EL-UBFT-90 |
90W |
130LPW |
11,700lm |
7.9kg |
|
|
EL-UBFT-120 |
120W |
130LPW |
15,600lm |
8.2kg |
|
|
EL-UBFT-150 |
150W |
130LPW |
19, 500lm |
8.2kg |
FAQ
E-Lite Semiconductor Co., Ltd. has 15 years of led lighting manufacturing experience in China and 12 years international LED lighting business experience. ISO9001 and ISO14000 support. ETL/DLC/CE/CB/RoHS/SAA certificates support for different products. We always keep our client's profits and never play the price game in the market.
Products generally have different installation methods, which can meet the needs of all aspects. Moreover, the installation method of the product is simple. Detailed installation tutorials will be equipped in the details page to let you worry free.
The advantages of our products are as follows:
1. We are the source manufacturers, quality is guaranteed, product warranty can reach 5 years or 10 years.
2. The price is more affordable. The more you order, the cheaper the price.
Choosing us means choosing protection. We will give you a discount on the platform price, if you are interested, please feel free to contact us.
Always a pre-production sample before mass production;
Always final inspection before shipment;
Sports light & Flood light, Roadway Lighting, High Bay for 80℃/176℉ Ambient Temp, Engineering & Heavy-duty Lighting, URBAN Lighting & High Mast Lighting, High Bay for General Uses, Wall Pack, Canopy Lighting, Tri-proof Linear Luminaire, etc.
Festa Urban Pole lights provide an effective way to light up walking paths and outdoor spaces by providing a large area with ease. They are pole mounted lights found in parking lots and large outdoor areas and direct all their light downward. They have a simple, pole top mounting system and by design, they are dark sky compliant.
Festa Ubran Lighting 30W~150W@130LM/W replacing 150 ~ 400 Watt Metal Halide. This post top fixture has an aluminum body / heatsink and Polycarbonate lens. The fixture is available with 120° beam angles and comes in 3000K or 4000K or 5000K color temperature. All fixtures are equipped with a 1-10V dimmable driver with 100V-277V voltage. The fixture comes with a Black finish. Photocell is included for dusk to dawn operations. Fixture includes 4.0KV built-in surge protection. This fixture has 2 3/8 Pole or 2 3/4 in Pole Mounting options. This fixture is designed to mount on top of existing poles.
BETTER DESIGN – Our LED Post Top Fixture uses 3030 LED modules that produce up to 130 Lumens per watt – Save even more by using a lower watt unit and still getting the light you need. Focus on your lumen needs, not on watts. This LED area light only uses Premium grade LED components. High strength housing make this an industrial grade LED Parking lot or Shoebox light.
BUILT TO LAST – 100,000 LED saves having to replace bulbs- Aluminum Housing with high tech Heat Sink. Better Heat dissipation ensures longer LED life and safety. IP66 Waterproof for all weather conditions. All backed by a 5 year warranty.
Offering a great variety of mounting options such as Post Top Lyre, Lantern, Post Top Two Arm, Side Arm, Suspended on Pole, and Suspended on Cable, the Festa Series Urban Lights are easy to be installed to meet any installation demands.
Replace your old 400 Metal Halide or HPS outdoor post top light with a high efficiency LED area light. Save money and replace bulbs less often with a 100,000 hour rated LED. Fixture is also ideal for new installations. Light up an area of your parking lot, walkway or sidewalk for safety and aesthetics.
High-pressure Die Cast Aluminum Housing with Powder Coat Finish(Corrosion Resistance)
High quality Polycarbonate (PC) lens optimizes lumen output
Heat-resistant and gas tight rubber seal for high IP rating (IP65)
Slim and elegant appearance for urban space
Excellent glare control for visual comfort.
Easy installation & maintenance.
Top grade UV resistance polycarbonate Lens.
Smart control system / Photocell available upon request.
|
Replacement Reference |
Energy Saving Comparison |
|
| 30W MAZZO SERIES URBAN LIGHT | 75 Watt Metal Halide or HPS | 60% saving |
| 60W MAZZO SERIES URBAN LIGHT | 150 Watt Metal Halide or HPS | 60% saving |
| 90W MAZZO SERIES URBAN LIGHT | 250 Watt Metal Halide or HPS | 64% saving |
| 120W MAZZO SERIES URBAN LIGHT | 400 Watt Metal Halide or HPS | 70% saving |
| 150W MAZZO SERIES URBAN LIGHT | 400 Watt Metal Halide or HPS | 62.5% saving |
| Type | Mode | Description |
 |
PTL | Post Top Lyre |
 |
PTTA | Post Top Two Arm |
 |
SOC | Suspended on Cable |
