EdgeTM Modular Flood Light
  • ETL
  • dle
  • CB1
  • SASO(1)
  • CE
  • Rohs
  • saa

Edge is a universal luminaire for both indoor and outdoor use such as area lighting, flood lighting, high bay lighting and security light. It delivers a high power lumen package for commercial and industrial applications. 50W to 450W, 140Lm/W efficacy, and choice of 15 optics produce precise illumination for any types of site or application. Independent modular LED engines and driver protect ensure long lifespan with improved thermal management. It replaces metal halide or HID luminaires with increased energy savings, better efficacy, and a more compact housing.

Edge is IP66 rated for operation in wet environments and all weather conditions including high humidity, wind and rain. Choice of mounting accessories make it easy for wall mount, surface mount, or pole mount. Yoke mount accommodates high bay and floodlight applications. 3G vibration rated for installation on machinery, industrial infrastructure, bridges and other demanding applications.

Specifications

Description

Features

Photometrics

Accessories

LED Chip & CRI

Lumileds 3030

Input Voltage

100-277VAC (347/480 VAC Optional) Dimming Optional

CCT

3000K, 4000K, 5000K, 6000K

Beam Angle

25° 30° 60° 90° 110° 140° 60x100° 90x145° 70x130° 80x145° 80x150° 85x125°

IP & IK

IP66 / IK10

Driver Brand

Inventronics / Sosen Driver

Power Factor

0.95 minimum

THD

<20% Max

Housing

Aluminum Alloy

Work Temp

-30 to 50°C (-22 to 122°F)

Mount Option

Hang Ring / 180° Long Bracket / Side Arm /Slip Fitter

Warranty

5 Years Warranty

Certificate

ETL DLC5.1 CE RoHS

Part#

Power

Efficacy(IES)

Total Lumen

Product Dimensions

N.W

EO-ED-75U

75W

137LPW

10,275lm

351x410x175mm

5.4kg/11.9lbs

EO-ED-100U

100W

154LPW

15,400lm

448x410x175mm

6.5kg/14.3lbs

EO-ED-150U

150W

140LPW

21,000lm

448x410x175mm

6.5kg/14.3lbs

EO-ED-200U

200W

145LPW

29,000lm

542x410x175mm

7.5kg/16.5lbs

EO-ED-240U

240W

137LPW

32,880lm

542x410x175mm

7.5kg/16.5lbs

EO-ED-300U

300W

140LPW

42,000lm

702x410x175mm

7.9kg/17.4lbs

EO-ED-450U

450W

140LPW

63,000lm

850x410x175mm

14.8kg/32.6lbs

FAQ

Q1: How much wattage per module have?

Elite: This Edge series is 75wattage per module ,the lamp tops out 450 watts, 150lumens per wattage.

Q2: What is the difference your Led Flood Light with other lights?

Elite: Our Led Flood Light using the robust material for High strength aluminum housing, equipped the top brand led source to make sure its high system efficacy.

5 years warranty always supported directly from factory.

Q3: Can I have a sample order for led light?

Elite: Yes, we welcome sample order to test and check quality, Mixed samples are acceptable.

Q4.ODM or OEM is accepted?

Elite: Yes, we can do ODM&OEM, put your logo on the light or package both are available.

Q5. What will you provide services?

E-lite: Considering the long time cooperation, it is better to let me know the following information, which kind of the buyers you are, for example you are factories, wholesalers, purchasing, dealers, consumers or do engineering, design, or home? of course, we can provide a detailed information to you about us, but we hope that you can also patiently let me know your information. We have established a customer complaint side, if you are not satisfied with our service, you can directly tell us via e-mail or telephone. We answer all questions for you.


  • Previous:
  • Next:

  • The 75-450W @150LM/W Edge Series LED flood light is high performance. This range of modular floodlights has been carefully designed with high luminous efficacy. This series is suitable for many different occasions, such as General Flood Lighting, Corridor Lighting, Security Lighting, Roof Top Lighting, Car Dearlership Lighting, Billboard Lighting, Parking Lot Lighting, Warehouse Lightingm and Gymnasium Lighting. Meanwhile, the flood lights offer a wide range of CCT/CRI (4500~5500K (2500~5500K Optional) and CRI≥70) to cover all the applications needs.The floodlight allows to mix the optics and has LED modules to optimize lighting designs and minimize number of floodlights in an installation. Compact floodlight (14.8kg for 6 Modules version, 7.9kg for 4 Modules version, 7.5kg for 3 Modules version and 6.5kg for 2 Modules version).

    The superior aluminium material provides strong protection and durability while ensuring heat dissipation. The luminaire housing is covered with a polyester powder coating for corrosion resistance, and IP-66 rated to protect against dust ingress and water jets. Key to this is the high quality aluminium heat sink which ensures the light source stays cooler and lasts longer. Its housing made of die-cast aluminum with “fishbone” fins to guarantee a better thermal management in every single position and a full working range at ambient temperature -40°C/+50°C. Lifetime greater than 100,000hrs. Surge level 10kV for Common mode and differential mode. Can be installed on the bracket of the floodlight, inside the mast or remotely from floodlight. The professional design allows the luminaire to work in rain and any other weather conditions.

    E-lite’s Edge Series light is highly energy efficient. For example, 300 watt LEDs emitting 42,000 lumens can replace 1000 watt metal halide MH or HPS/HID lamps that saving a lot of money every year. It is worth mentioning that the edge floodlight offers a choice of 15 optical lenses made of PC material for optimum lighting performance and durability. The various optical lenses offer crazy use for different outdoor applications and the V-shaped light distribution of 20 to 150 degrees is suitable for large squares or industrial plants.

    Therefore, the above excellent performance of edge lamp means that it will emit brightness similar to natural sunlight, which can be used where it is necessary to illuminate or reduce the space without causing too much damage to the eyes.

    CERTIFICATION & WARRANTY: E-Lite Edge Series High Bay provides a 5 year warranty along with CE, RoHS ETL / DLC pending certifications.

    ★ System Light Efficacy 137~154 LPW

    ★ Multiple Choice of Optical Lenses

    ★ Easy Installation & Maintenance

    ★ Flexible, Modular Design

    ★ IP66

    ★ 3G Viberation Rating

    ★ Five Years Warranty

    ★ CE, RoHS

    ★ ETL / DLC pending

    Replacement Reference Energy Saving Comparison
    EO-ED-75U 250Watt Metal Halide or HPS 70% saving
    EO-ED-100U 250Watt Metal Halide or HPS 60% saving
    EO-ED-150U 400Watt Metal Halide or HPS 62.5% saving
    EO-ED-200U 600Watt Metal Halide or HPS 66.67% saving
    EO-ED-240U 600Watt Metal Halide or HPS 60% saving
    EO-ED-300U 1000Watt Metal Halide or HPS 70% saving
    EO-ED-450U 1000W/1500Watt Metal Halide or HPS 55%~70% saving

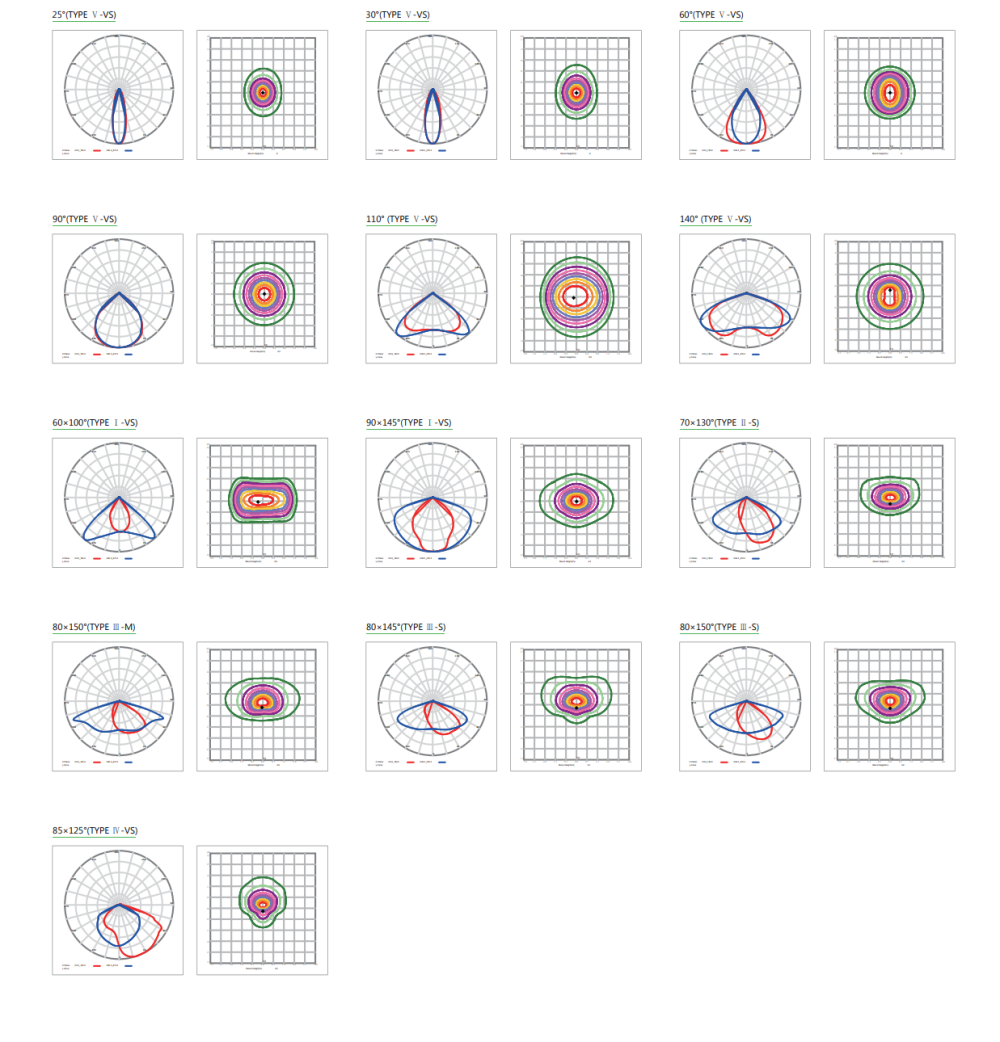

    photometrics15

    Image Product Code Product Description
    SP-HR20 SP-HR20 Hang Ring
    SP-UB SP-UB Universal Bracket (Standard)
    SP-UB-180 SP-UB-180 Universal Bracket 180° Vertical Mount
    SP-UB-360 SP-UB-360 Universal Bracket 300° Vertical Mount
    SP-SF SP-SF Slip Fitter
