Cheap PriceList for New Product 50W 100W 120W 150W 200W 250W 300W Outdoor LED High Mast Flood Light
-
-
Being supported by an highly developed and skilled IT group, we could offer you technical support on pre-sales & after-sales support for Cheap PriceList for New Product 50W 100W 120W 150W 200W 250W 300W Outdoor LED High Mast Flood Light, With us your money in secure your business in protected . Hope we can be your trustworthy supplier in China . Wanting forward for your cooperation .
Being supported by an highly developed and skilled IT group, we could offer you technical support on pre-sales & after-sales support for China Mast Light Pole and Smart Traffic Single Arm High Light Smart Pole, During in 11 years, We have participated in more than 20 exhibitions, obtains the highest praise from each customer. Our company has been devoting that “customer first” and committed to helping customers expand their business, so that they become the Big Boss !
| Pole Type | Height(H) | Dimensions | Flange Parameters | Anchor Parameters | Weight (Kg) |
Material (steel) |
Surface Treatment | |||||
| Top Diameter(D1) | Bottom Diameter(D2) | Arm Length(L) | Thickness | Size(L1×L1×B1) | Hole Size(C) | Size (∅D×H) |
Screw (m) |
|||||
| Light Pole | 4m | ∅60 | ∅105 | / | 2.5mm | 250×250×12 | 4-∅14×30 | ∅250×400 | 4-M12 | 25Kg | Q235 | Hot dip galvanizing+Painting |
| 6m | ∅60 | ∅121 | / | 2.5mm | 250×250×14 | 4-∅20×30 | ∅250×600 | 4-M16 | 40Kg | Q235 | ||
| 8m | ∅60 | ∅150 | / | 3mm | 300×300×18 | 4-∅22×30 | ∅300×800 | 4-M18 | 70Kg | Q235 | ||
| 10m | ∅60 | ∅171 | / | 3.5mm | 350×350×20 | 4-∅24×40 | ∅350×1000 | 4-M20 | 112Kg | Q235 | ||
| 12m | ∅60 | ∅193 | / | 4mm | 400×400×20 | 4-∅28×40 | ∅400×1200 | 4-M24 | 165Kg | Q235 | ||
| Light pole with self-curved arm | 4m | ∅60 | ∅112 | 800mm | 2.5mm | 250×250×12 | 4-∅14×30 | ∅250×400 | 4-M12 | 28Kg | Q235 | |
| 6m | ∅60 | ∅137 | 1000mm | 2.5mm | 250×250×14 | 4-∅20×30 | ∅250×600 | 4-M16 | 45Kg | Q235 | ||
| 8m | ∅60 | ∅160 | 1200mm | 3mm | 300×300×18 | 4-∅22×30 | ∅300×800 | 4-M18 | 77Kg | Q235 | ||
| 10m | ∅60 | ∅189 | 1400mm | 3.5mm | 350×350×20 | 4-∅24×40 | ∅350×1000 | 4-M20 | 125Kg | Q235 | ||
| 12m | ∅60 | ∅209 | 1500mm | 4mm | 400×400×20 | 4-∅28×40 | ∅400×1200 | 4-M24 | 180Kg | Q235 | ||
| Pole Type | Height(H) | Dimensions(octagon) | Flange Parameters | Anchor Parameters | Weight (Kg) |
Material (steel) |
Surface Treatment | |||||
| Top Diameter(L1) | Bottom Diameter(L1) | Divided Parts | Thickness (for different parts) |
Flange Size (∅D×B1) |
Hole Size(C) | Size （∅D×H） |
Screw （m） |
|||||
| High Mast Pole | 20m | 203 | 425 | 2 | 6mm/8mm | ∅800×25 | 12-∅32×55 | ∅700×2000 | 12-M27 | 1351Kg | Q235 | Hot dip galvanizing+Painting |
| 24m | 213 | 494 | 3 | 6mm/8mm/10mm | ∅900×25 | 12-∅35×55 | ∅800×2400 | 12-M30 | 1910Kg | Q235 | ||
Being supported by an highly developed and skilled IT group, we could offer you technical support on pre-sales & after-sales support for Cheap PriceList for New Product 50W 100W 120W 150W 200W 250W 300W Outdoor LED High Mast Flood Light, With us your money in secure your business in protected . Hope we can be your trustworthy supplier in China . Wanting forward for your cooperation .
Cheap PriceList for China Mast Light Pole and Smart Traffic Single Arm High Light Smart Pole, During in 11 years, We have participated in more than 20 exhibitions, obtains the highest praise from each customer. Our company has been devoting that “customer first” and committed to helping customers expand their business, so that they become the Big Boss !
Steel light poles are foundational elements in the infrastructure of modern cities and towns, providing essential illumination for streets, parks, parking lots, and more. They are prized for their strength, durability, and versatility, qualities that make them a preferred choice among various materials. As engineering and design capabilities continue to advance, steel lighting poles are not just utility structures anymore, but are becoming key components in smart city initiatives, embodying both aesthetic appeal and innovative functionality.
E-Lite steel light poles have been in use for decades for a good reason. They provide impressive strength and durability while providing a cost-effective lighting solution. If your project is being built in an area that has high winds, needs to keep costs down, E-Lite steel light poles are an ideal choice.
One of the key benefits of E-Lite steel light poles is their durability. They are able to withstand high winds, heavy loads, and extreme temperatures without bending or breaking. This makes them an ideal choice for areas with harsh weather conditions or heavy traffic. E –Lite steel light poles are typically made from high-quality steel that is treated with a protective coating to prevent corrosion and rust. The coating is being made from materials like galvanized steel, which is a popular choice due to its resistance to weathering and rusting, which guard against corrosion, adding to their lifespan. The robustness of steel poles results in fewer replacements, which in turn reduces the overall maintenance costs for our customers.
E-Lite understands that functionality should not come at the expense of aesthetics. Our steel poles offer the flexibility of custom design, allowing them to blend seamlessly into different architectural styles and landscapes. At E-Lite, we offer all popular shapes of steel poles from straight octagonal tapered steel poles to round or even squared poles depending on your design needs. Also different sizes supplied like 4m, 6m, 8m, 10m,12m,20m,24m or they can be designed in a range of shapes and sizes to fit different lighting applications and can be customized with additional features like brackets, arms, or decorative elements.
Steel’s sustainability is another feather in its cap. Unlike some other materials, steel is 100% recyclable without losing its quality. At E-Lite, we are committed to contributing to a sustainable future and, as such, ensure that our manufacturing processes are eco-friendly. We prioritize the recycling of scrap metal, minimizing waste, and reducing our carbon footprint.
Compared to the concrete or wood counterparts, steel lighting poles are significantly lighter, making transportation and installation much simpler. Their low-maintenance nature further adds to their appeal. A periodic check for any signs of rust or corrosion is all that’s required, unlike wooden poles that require frequent inspections for rot and insect damage.
When selecting a steel light pole, it is important to consider factors such as height and weight requirements, the location of the installation, and the type of lighting that will be used. The right steel light pole will be able to provide reliable and long-lasting illumination while also fitting in with the surrounding environment.
Long life spans for decades
Ease of Installation and Maintenance
Customizability and Aesthetics
The Promise of Durability
Sustainability and Eco-Friendliness

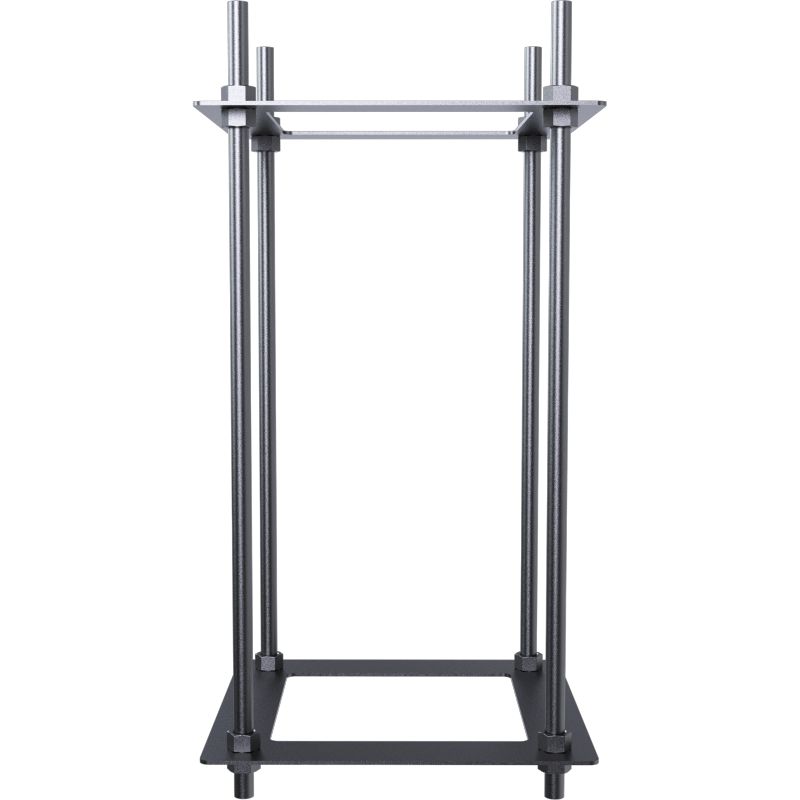

Anchor for light pole

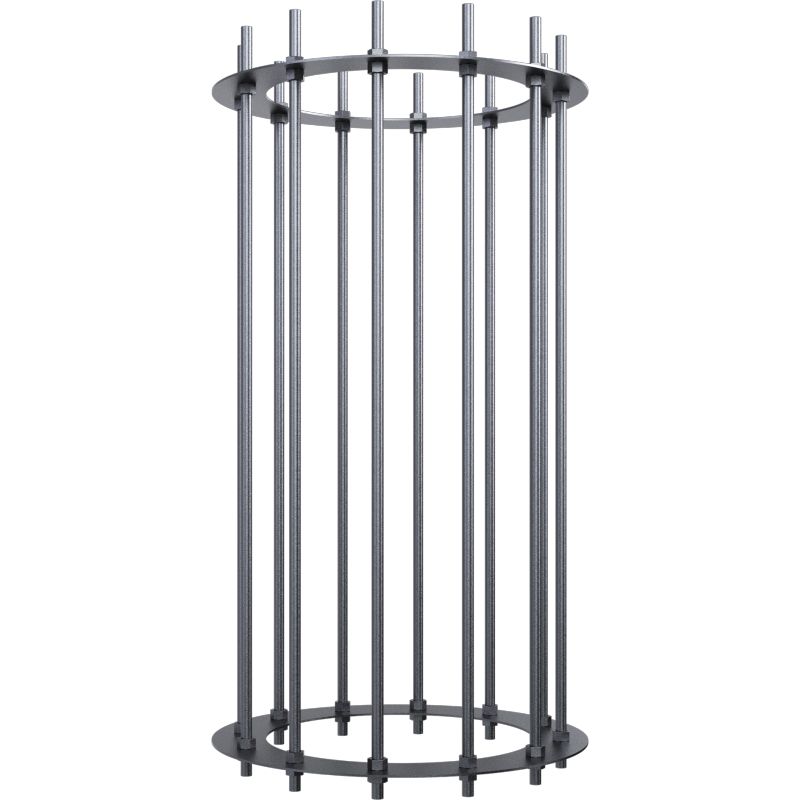

Anchor for high mast light pole
Q1: What is the benefit of steel light pole?
The advantages of steel distribution poles include: design flexibility, high strength, relatively light weight, long life, and factory pre-drilling, reduced maintenance costs, predictability and enhanced reliability, no damage due to woodpeckers, pole rot, or fires, no catastrophic or domino effect failures, aesthetically pleasing, environmentally friendly.
