AriaTM Solar Street Light
-
-
Parameters | |
LED Chips | Philips Lumileds 3030 |
Solar Panel | Monocrystalline silicon photovoltaic panels |
Color Temperature | 5000K(2500-6500K Optional) |

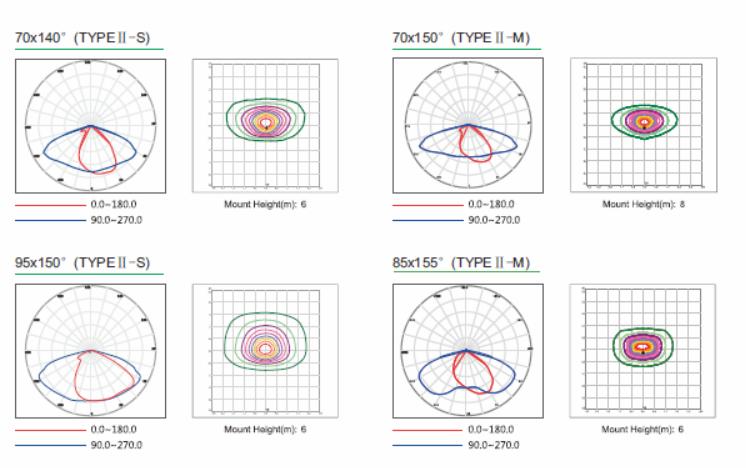

Beam Angle | Type Ⅱ, Type Ⅲ |
IP & IK | IP66 / IK09 |
Battery | Lithium |
Solar Controller | EPEVER, Remote Power |
Work Time | Three consecutive rainy days |
Daytime | 10 hours |
Dimming / Control | PIR, dimming to 20% from 22PM to 7 AM |
Housing Material | Aluminum alloy(Gary Color) |
Work Temperature | -30°C ~ 45°C / -22°F~ 113°F |
Mount Kits Option | Slip fitter/ bracket for solar PV |
Lighting status | 4hours-100%, 2hours-60%, 4hours-30%, 2hours-100% |
Model |
Power |
Solar Panel |
Battery |
Efficacy(IES) |
Lumens |
Dimension |
EL-AST-30 |
30W |
70W/18V |
90AH/12V |
130LPW |
3,900lm |
520×200×100mm 20.4×7.8×3.9in
|
EL-AST-50 |
50W |
110W/18V |
155AH/12V |
130LPW |
6,500lm |
|
EL-AST-60 |
60W |
130W/18V |
185AH/12V |
130LPW |
7,800lm |
|
EL-AST-90 |
90W |
2x100W/18V |
280AH/12V |
130LPW |
11,700lm |
620×272×108mm 24.4×10.7×4.2in |
EL-AST-100 |
100W |
2x110W/18V |
310AH/12V |
130LPW |
13,000lm |
720×271×108mm 28.3×10.6×4.2in |
EL-AST-120 |
120W |
2x130W/18V |
370AH/12V |
130LPW |
15,600lm |
FAQ
Solar street light has the advantages of stability, long service life, simple installation, safety, great performance and energy conservation..
Solar LED street lights rely on the photovoltaic effect, which allows the solar cell to convert sunlight into usable electrical energy and then power on the led lights.
Yes, we offer 5 years warranty to our products.
If we're to talk about the basics, it's obvious that solar LED street lights work by utilising solar energy – however, it doesn't stop there. These street lights are actually dependent on photovoltaic cells, which are the ones responsible for absorbing solar energy during daytime.
When the sun is out, a solar panel takes the light from the sun and produces electrical energy. The energy can then be used immediately or stored in a battery. The goal of most solar lights is to provide power at night, so they will definitely contain a battery, or be capable of attaching to a battery.
Thanks to the rapid development of photovoltaic and LED lighting technologies, solar powered LED street lights are becoming more and more popular. Elite Aria series LED solar street light, the perfect mixture of photovoltaic and high efficiency LEDs, brings excellent financial benefits as no power needed, also great environment benefits with the clear renewable solar energy. This split LED solar street light generates its own electricity during the daytime, stores this energy in a battery and at dusk discharges this battery into the solar LED light fixture. This cycle will continue until the sun rises at dawn.
Aria series solar-powered LED roadway light is a split solar light model in which the solar panel is separated from the LED and other electrical components. This design allows the installation personnel to adjust the orientation of the solar panel to allow maximum sunlight exposure and collect the greatest amount of solar energy. Again, because of this design, the highest 120W model of this series is available, which can produce a sufficient amount of brightness up to 15600lm with its high performance Philips Lumileds 3030 LED chip.
With the heavy-duty, durable one-piece die-casting design, powder coated housing and high quality monocrystalline silicon panel, make the Aria series LED solar street light IP66 waterproof and corrosion resistance, which can withstand harsh, extreme outdoor conditions and corrosive environments.
Like other commercial solar street lights, smart control such as motion sensors, clock timers, Bluetooth/smart phone connectivity and manual or remote on/off switches functions could be customized.
Easy installation and maintenance. During the installation, risk of accident is avoided since the external wires are eliminated. No damaged cables or broken conduits make the maintenance less and easy. Aria separated solar LED street lights are suitable for all outdoor environment, such as street, highway, roadway, village path, garden, factory, playgrounds, parking lots, plazas, etc.
★ Energy saving solar street lights for project, low-carbon and cables free.
★ Easily be fixed and mounted without requiring the help of an electrician
★ It can be controlled by Remote. Automatically turn on when dusk.
★ Powered by a high-quality lithium rechargeable battery that’s solar powered.
★ IP66 waterproof for outdoor. Each light works independently.
★ Durable, Weather-proof and water-resistant
★ Multi control methods optional
★ Easy installation with fixing brackets, completely wireless.
