ARESTMSeries LED Sports Light

From recreational level to club level and to competition level, the higher level of competition, the greater the requirements. Designed for flexibility, Ares covers a broad range of sports lighting needs.

Working at 140 Lm/W and light output up to 168,000lm, The Ares sports light enables substantial savings from CO2 emissions to energy consumption of more than 50% as compared to conventional lighting solutions.

Specification

Description

Features

Energy Saving Chart

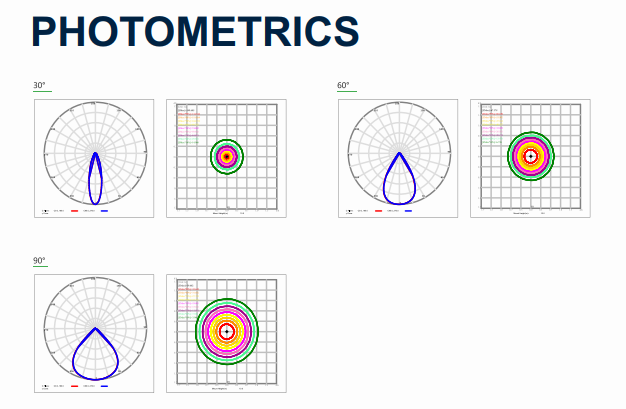

Photometric

Accessories

Parameters
LED Chips Philips Lumileds / RA>70
Input Voltage AC100-277V
Color Temperature 4500~5500K (2500~5500K Optional)
Beam Angle 30°/60°/ 90°
IP & IK IP66 / IK10
Driver Brand Sosen Driver
Power Factor 0.95 minimum
THD 15% Max
Dimming / Control 0-10V(optional)
Housing Material Non-toxic corrosion resistant aluminum
Work Temperature -40°C ~ 45°C / -40°F~ 113°F
Mount Kits Option Hang Ring

Model

Power

Efficacy(IES)

Lumens

Dimension

Net Weight

EL-AS-500

500W

140LPW

70,000lm

636x355x284mm

15kg

EL-AS-600

600W

140LPW

84,000lm

EL-AS-800

800W

140LPW

112,000lm

678x646x284mm

30kg

EL-AS-1000

1000W

140LPW

140,000lm

EL-AS-1200

1200W

140LPW

168,000lm


  • Previous:
  • Next:

  • NEW ARES LED Sports Lighting Solution Provider
    ELITE Specifically designed precise light control to meet the needs of sports lighting level requirements. The Ares provides optimum visibility, without glare or shadows as the special shield and optics design. Then every athlete, whatever their sports, can enjoy themselves, perform at their best and avoid injury. Ares series products to bring you an unprecedented visual feast.

    HOUSING
    Aluminum alloy housing, corrosion resistant treatment. The innovation design allows for easy installation, replacement, and maintenance. Slim& light profile design that minimizes wind load. IK10&IP66 rated.

    DRIVER
    With built-in or remote driver capabilities, this luminaire gives additional flexibility to fit into a variety of indoor and outdoor applications. DMX, DALI, 0-10V,1-10V flexible for different requirement of events.

    OPTICS
    Precision optics place light on target area with accurate control, super evenly lighting effect. Reflective panels are used to reduce glare while minimal effect on light output. Perfect glare control, glare typically impacts larger areas as pole mounted luminaires may be visible from long distances. Incorporating external shielding (the visors), the Ares limits direct view of light sources and help reduce glare.

    BRACKET SCALEPLATE

    The bracket with scale plate of angle and scale, easy to adjust any installation angle.


    Why Replace Metal Halide with Led Ares Sports Lighting

    1)Energy saving
    Replacing Metal Halide with Led lights, 500W Led can replace 1000w-1500w MH directly. After that, you will enjoy the instant benefit of saving electricity bill and running cost.

    2)Without Light Pollution
    Ares Sports Light come with precise optical system that direct the lights onto the designated areas to reduce light loss. That is why the quantities of Ares lighting is much fewer than MH lamp while can reach at least 3 times brighter.

    3)Anti-Glare-Protect Pilots eyes
    Actually, the application is not only for apron high mast light, but also hallways, parking lots, runway etc. To avoid the glare lighting that affect pilots, ground staff, or tower control members, ELITE R&D team designed and tested it since 10 years ago, and developed the advanced optical with secondary reflection successfully. With the lighting controlled into the center field precisely, the uniformity and brightness are improved greatly.

    1. System Light Efficacy 140 LPW.
    2. Ultra Bright, Up to 168,000Lm.
    3. Robust die cast aluminum body
    4. Multiple Choice of Optical Lenses.
    5. Low light spill & excellent lighting uniformity.
    6. 5 years warranty, up to 150,000 hours long life

    Replacement Reference

    Energy Saving Comparison

    EL-AS-500

    1000 Watt Metal Halide or HPS 50% saving

    EL-AS-600

    1500 Watt Metal Halide or HPS 60% saving

    EL-AS-800

    2000 Watt Metal Halide or HPS 60% saving

    EL-AS-1000

    2000 Watt Metal Halide or HPS 52% saving

    EL-AS-1200

    3000 Watt Metal Halide or HPS 60% saving

    w5

    w6 w6
