AriaTM Street Light
  • CE
  • Rohs
    Pending -
  • SASO(1)
  • enec

With a lifetime up to 100,000 hours, Aria is a top-quality streetlight fixture built to with stand all conditions, and to cope with physical impact and vibration. The robust yet modern slim and sleek looking street lamp comes with 4 sizes, 2 different efficacy packages, 130LPW or 150LPW, together with a choice of several light distributions, it ensures better light uniformity and a maximum spacing between poles for both pedestrian and vehicle road applications. The die-cast aluminum housing offers tool-free top opening, the universal spigot offers full flexibility through top and side entry as well as tilt adjustment.

Aria is a truly future-proof solution, with ready NEMA or Zaga connectivity, it enables you to enjoy the benefits of connected lighting systems today and also gets the city ready for the innovations to come.






LED Chip & CRI Philips Lumileds / RA≥70
Input Voltage AC100-277V Or 277-480V
CCT 3000K, 4000K, 5000K
Beam Angle TYPE Ⅱ: 70x140°70x150°TYPE Ⅲ: 90x150°65x155°
IP & IK IP66 / IK09
Driver Brand Inventronics or Sosen
Power Factor 0.95 minimum
THD 20% Max
Housing Die-cast Aluminum Alloy
Work Temp -45°C ~ 45°C / -49°F~ 113°F
Mount Option Slip Fitter
Warranty 5 Years Warranty
Certificate CE RoHS
Model Power Efficacy(IES) Total Lumen Dimension
EL-STAA-10 10W 135lm/w 1,450lm 520×200×100mm
EL-STAA-20 20W 131lm/w 2,620lm
EL-STAA-30 30W 127lm/w 3,930lm
EL-STAA-40 40W 131lm/w 52,40lm
EL-STAA-50 50W 132lm/w 65,00lm
EL-STAA-60 60W 127lm/w 78,60lm
EL-STAA-70 70W 126lm/w 88,20lm 620×272×108mm
EL-STAA-80 80W 130lm/w 10,400lm
EL-STAA-90 90W 127lm/w 11,430lm
EL-STAA-100 100W 126lm/w 12,600lm 720×271×108mm
EL-STAA-110 110W 130lm/w 14,300lm
EL-STAA-120 120W 135lm/w 16,200lm
EL-STAA-130 130W 130lm/w 16,900lm
EL-STAA-140 140W 127lm/w 17,780lm
EL-STAA-150 150W 130lm/w 19,500lm
EL-STAA-160 160W 130lm/w 20,800lm 750×333×115mm
EL-STAA-170 170W 130lm/w 22,100lm
EL-STAA-180 180W 127lm/w 22,860lm
EL-STAA-190 190W 125lm/w 24,700lm
EL-STAA-200 200W 130lm/w 27,200lm
EL-STAA-220 220W 130lm/w 28,600lm 850×333×115mm
EL-STAA-240 240W 134lm/w 32,160lm


Q1: Are you a manufacturer?

E-LITE: Yes, we’re a manufacturer with over 15 years R&D and manufacture experience base on ISO quality management.

Q2: How do you ship the finished products?

E-LITE: By SEA, AIR or Express (DHL,UPS,Fedex,TNT,etc) are optional.

Q3: How to place an order for Aria Cobra Head Street Light?

E-LITE: Firstly, please let us know your detail requirement and application environment.

Secondly, we will recommend some suitable products and solutions to you according to your request.

Thirdly, after confirm all the details, customers will issue the purchase order and make the payment to confirm, and then we start for the production and arrange the shipment.

  • Previous:
  • Next:

  • Compared to the traditional street light, E-Lite Aria LED street light is an integrated light that uses light emitting diodes (LED) as its light source, combines the luminaire and the fixture together as a whole part. Designed from the ground up as a totally optimized LED street lighting system, E-Lite Aria series LED street lights keep the similar look of the traditional cobra head design which are popular and welcomed by people all over the world.

    The housing for LED street lights are similar in design to heat sinks used to cool other electronics such as computers. It’s very important to facilitate the flow of hot air away from the LEDS and prolong the lifespan of the fixture. High quality one-piece die-cast aluminum dissipation structural design of E-Lite Aria roadway light has enlarged the area of heat-dissipation, not only to guarantee LED luminous effect but also prolong the usage lifespan up to more than 100,000 hours.

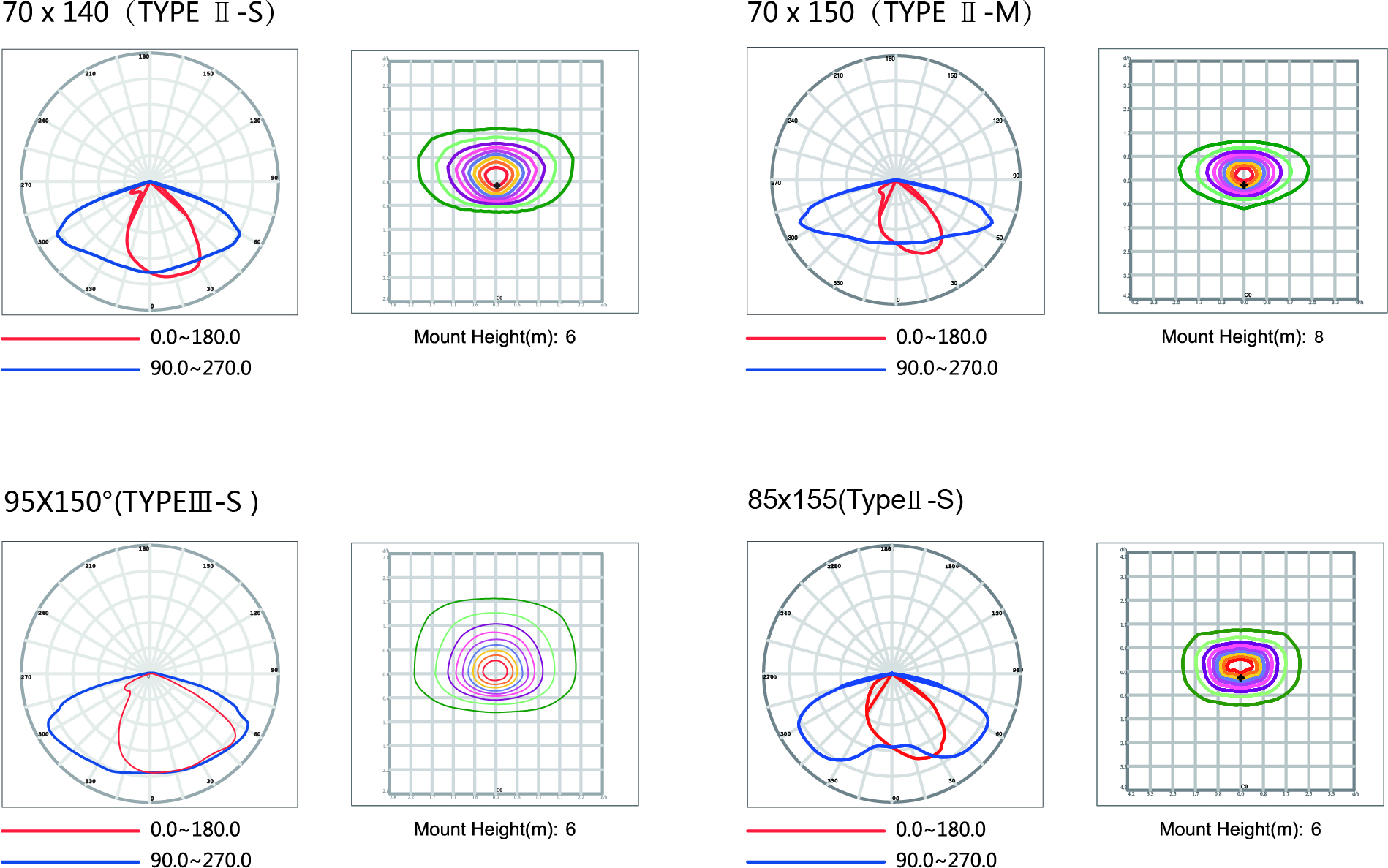

    Ture TypeⅡ: 70×140°70×150°and TypeⅢ: 90×150°65×155°lens are supplied. With the specialized lens, Aria series street light is designed to cast its light in a rectangular pattern which can keep most light is directed to the road and less light to the footpaths and other areas. In this case, less of the luminance of the light is lost and produces no light pollution in the air and surrounding environment, which can keep the sky dark.

    Many LED lighting retrofits have been claimed to dramatically reduce energy use. Compare to the traditional lights like fluorescent and high-intensity discharge (HID) lamps, mercury vapor, metal halide, and sodium vapor lamps, E-Lite Aria series street lights save more energy up to 60% with 135LPW, which is very friendly to the environment and your wallet.

    Compare to other normal LED street light, Aria’s tool free maintenance and access makes installation and maintenance simple and easy. You can just install the street light in a few minutes according to the instruction within the package, which not only improving the operation efficiency but also reducing the potential danger such as the tool hazards.

    Suggested application areas are streets, roadways, loading platforms, parking facilities & parking lots, rural homes, public entrances and perimeters.

    ★ System light efficacy 135 lm/W·

    ★ Slim cobra head design.

    ★ Multiple choice of optical lenses·

    ★ Tool-free Access: easy installation and maintenance.

    ★ One-piece die-cast aluminum housing design has excellent performance in heat dissipation.

    ★ IP66: Water and Dust Proof.

    ★ 3G Vibration, IK10

    ★ 5 years warranty, up to 100,000 hours long life·

    ★ Patented thermal management allows -30oC to 45oC ambient working temperature.

    Replacement Reference

    Energy Saving Comparison

    10W Aria Street Light

    35 Watt Metal Halide or HPS

    71% saving

    20W Aria Street Light

    50 Watt Metal Halide or HPS

    60% saving

    30W Aria Street Light

    75 Watt Metal Halide or HPS

    60% saving

    40W Aria Street Light

    100 Watt Metal Halide or HPS

    60% saving

    50W Aria Street Light

    150 Watt Metal Halide or HPS

    66.7% saving

    60W Aria Street Light

    150 Watt Metal Halide or HPS

    60% saving

    70W Aria Street Light

    175 Watt Metal Halide or HPS

    60% saving

    80W Aria Street Light

    250 Watt Metal Halide or HPS

    68% saving

    90W Aria Street Light

    250 Watt Metal Halide or HPS

    64% saving

    100W Aria Street Light

    250 Watt Metal Halide or HPS

    60% saving

    110W Aria Street Light

    400 Watt Metal Halide or HPS

    72.5% saving

    120W Aria Street Light

    400 Watt Metal Halide or HPS

    70% saving

    130W Aria Street Light

    400 Watt Metal Halide or HPS

    67.5% saving

    140W Aria Street Light

    400 Watt Metal Halide or HPS

    65% saving

    150W Aria Street Light

    400 Watt Metal Halide or HPS

    62.5% saving

    160W Aria Street Light

    400 Watt Metal Halide or HPS

    60% saving

    170W Aria Street Light

    400 Watt Metal Halide or HPS

    57.5% saving

    180W Aria Street Light

    400 Watt Metal Halide or HPS

    55% saving

    190W Aria Street Light

    400 Watt Metal Halide or HPS

    52.5% saving

    200W Aria Street Light

    400 Watt Metal Halide or HPS

    50% saving

    220W Aria Street Light

    750 Watt Metal Halide or HPS

    70.7% saving

    240W Aria Street Light

    750 Watt Metal Halide or HPS

    68% saving

    Aria Series Street Light  Road Light  Roadway Light

    Type Mode Description
    SF601 SF601 Slip fitter
    SC SC Shorting cap
    PC PC Photocell
    NM3 NM3 3 Pins NEMA Receptacle
    NM5 NM5 5 Pins NEMA Receptacle
    NM7 NM7 7 Pins NEMA Receptacle
    ZG ZG Zhaga Receptacle
